WSG-1068 ENGINE

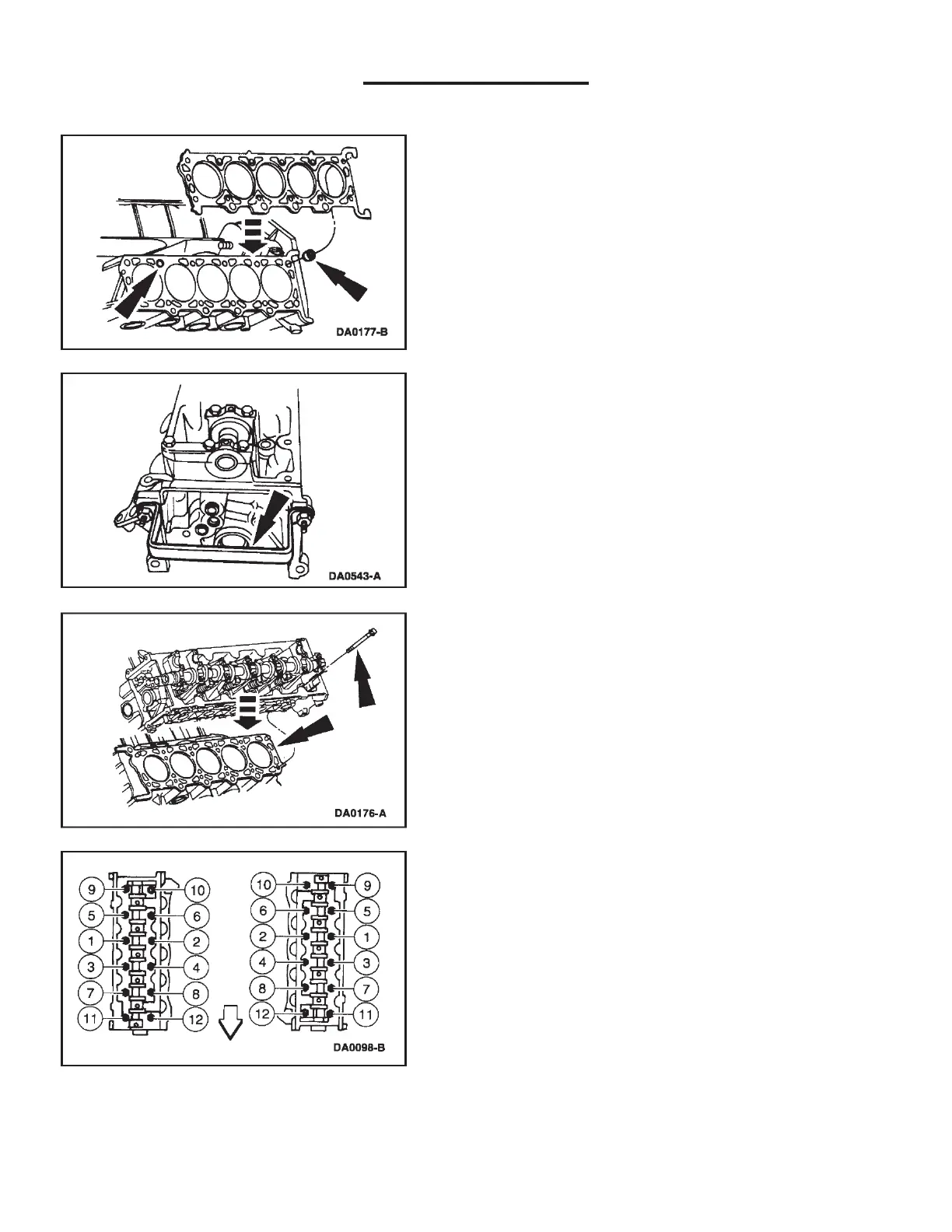

22. Install the head gasket (6051) over the dowel pins.
23. Install the Camshaft Holding Tools.
24. Install the Lifting Handles.
25. Install the cylinder head (6049) on the head gasket
and loosely install new bolts.
The LH is shown; the RH is similar.
26. NOTE: Be sure to tighten the new bolts in three
stages.
Stage 1: Tighten to 37-43 Nm (27-32 lb/ft).
Stage 2: Tighten an additional 85 degrees to 95
degrees.
Stage 3: Tighten an additional 85 degrees to 95
degrees.
