138
WSG-1068 ENGINE

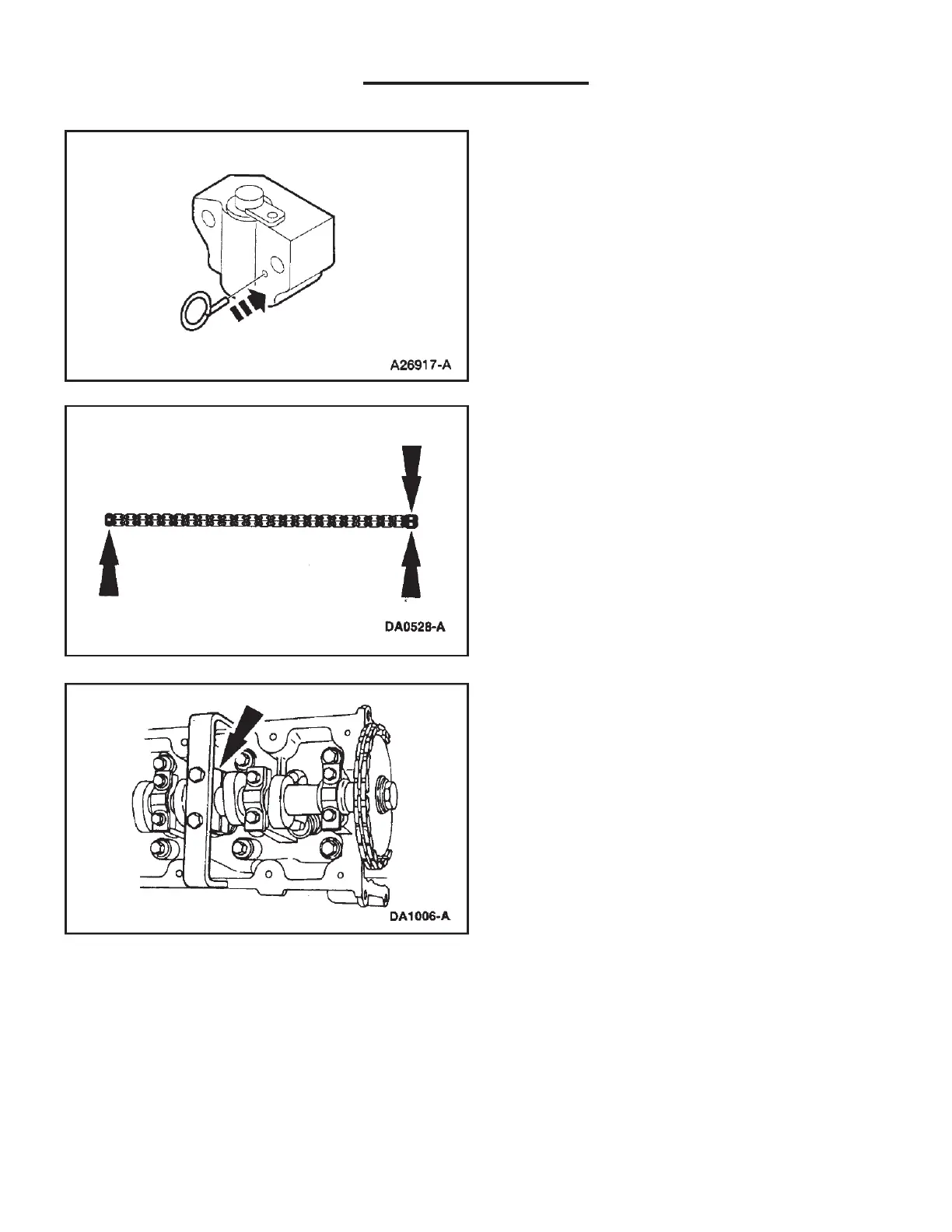

32. Install a paper clip into the hole in the tensioner
housing to hold the ratchet assembly and
plunger in during installation.
33. If the copper links are not visible, mark two links
on one end and one link on the other end to
use as timing marks.
34. Loosen the Camshaft Holding Tools on both
camshafts (6250).
To Next Page
