202
WSG-1068 COOLING SYSTEM

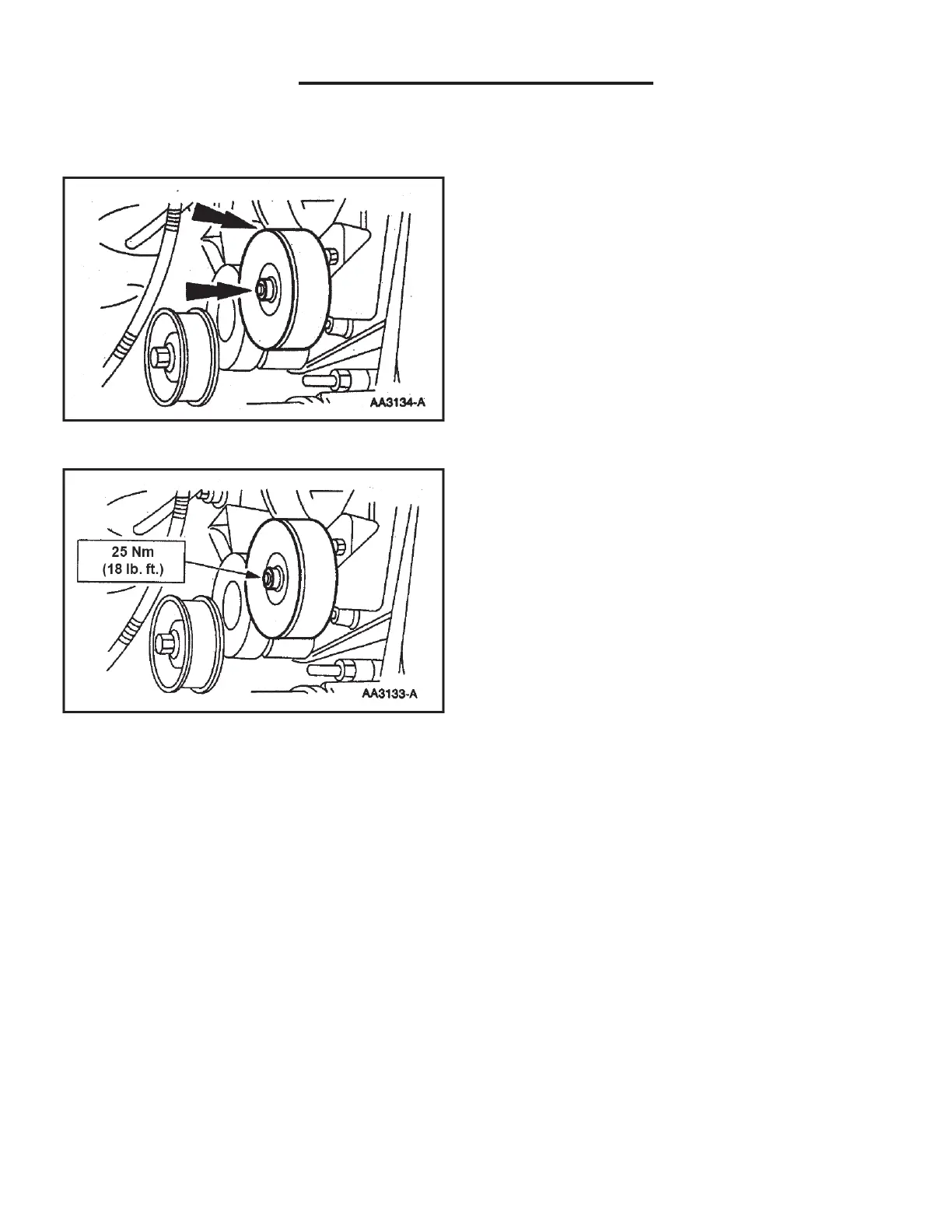

Belt Idler Pulley - Removal
1. Remove the fan drive belt (8620) off of the belt
idler pulley (8678). For additional information,
refer to Fan Drive Belt page 05-12.
2. Remove the bolt and the belt idler pulley.
Belt Idler Pulley - Installation
1. To install, reverse the removal procedure.
