WSG-1068 STARTER SYSTEM
Starter Motor - Installation

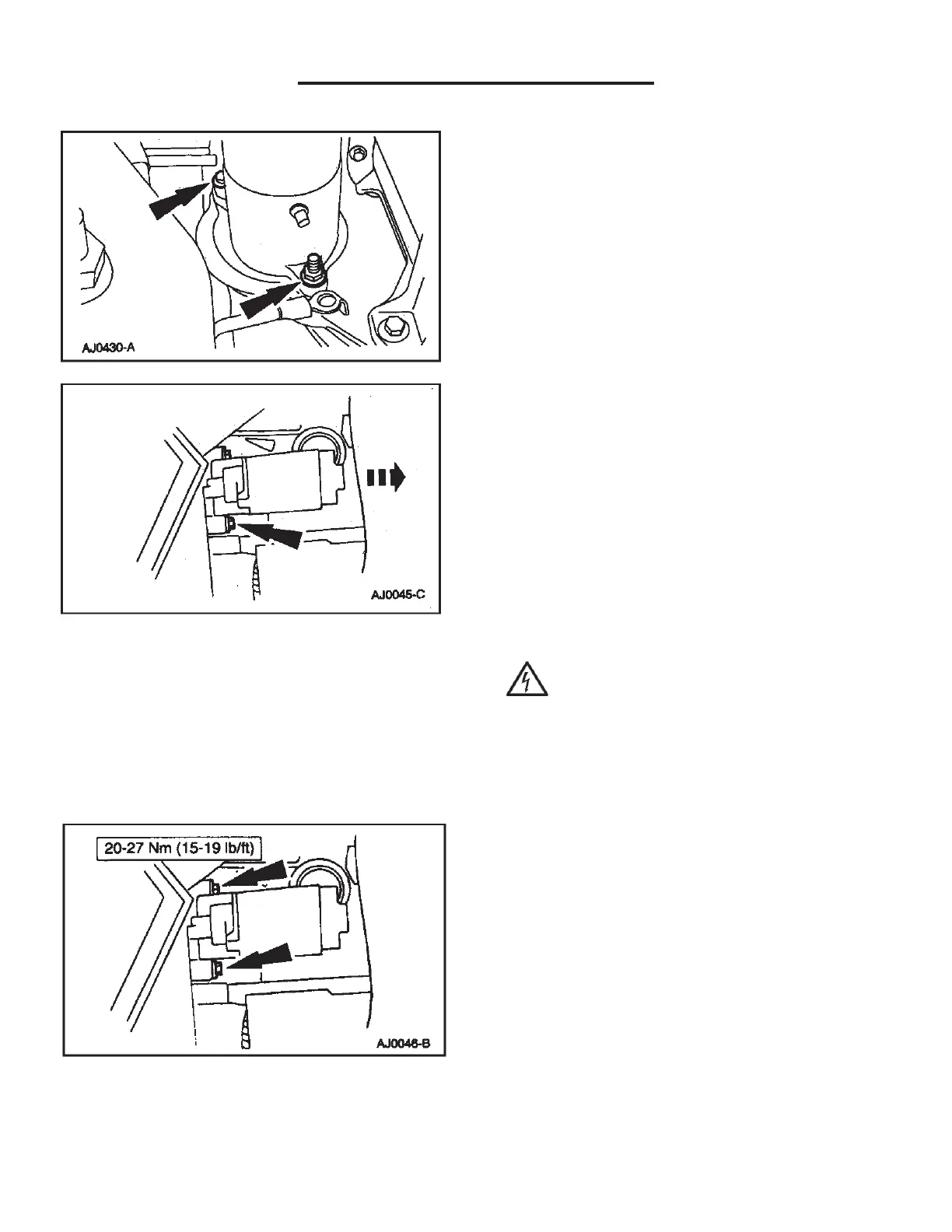

6. Remove the bolt and nut.
7. Remove the starter motor.
WARNING: WHEN CARRYING OUT
MAINTENANCE ON THE STARTER SYSTEM BE
AWARE THAT HEAVY GAUGE LEADS ARE
CONNECTED DIRECTLY TO THE BATTERY. MAKE
SURE PROTECTIVE CAPS ARE IN PLACE WHEN
MAINTENANCE IS COMPLETE. FAILURE TO
FOLLOW THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY.
NOTE: It is recommended that wiring service kit F2PZ-
11K162-A be used, which includes a 70 inch long #12
gauge wire, a terminal nut, a terminal cover, four tie
wraps and insulation instructions.
1. Install the starter motor.
1. Position the starter motor.
2. Install the bolts.
