WSG-1068 ENGINE
Crankshaft Pulley - Installation
CAUTION: Mating parts must make contact to each other
within 4 minutes and connecting bolts must be torqued within
15 minutes after applying sealant. Failure to follow this
procedure can cause future oil leakage.
Use silicone gasket and sealant F6AZ-19562-AA or
equivalent meeting Ford specification WSE-M4G323-A6.
NOTE: Sealant must be removed and area cleaned with solvent if
above instructions are not followed.
Use metal surface cleaner F4AZ-19A536-RA or
equivalent meeting Ford specification WSE-M5B292-A.

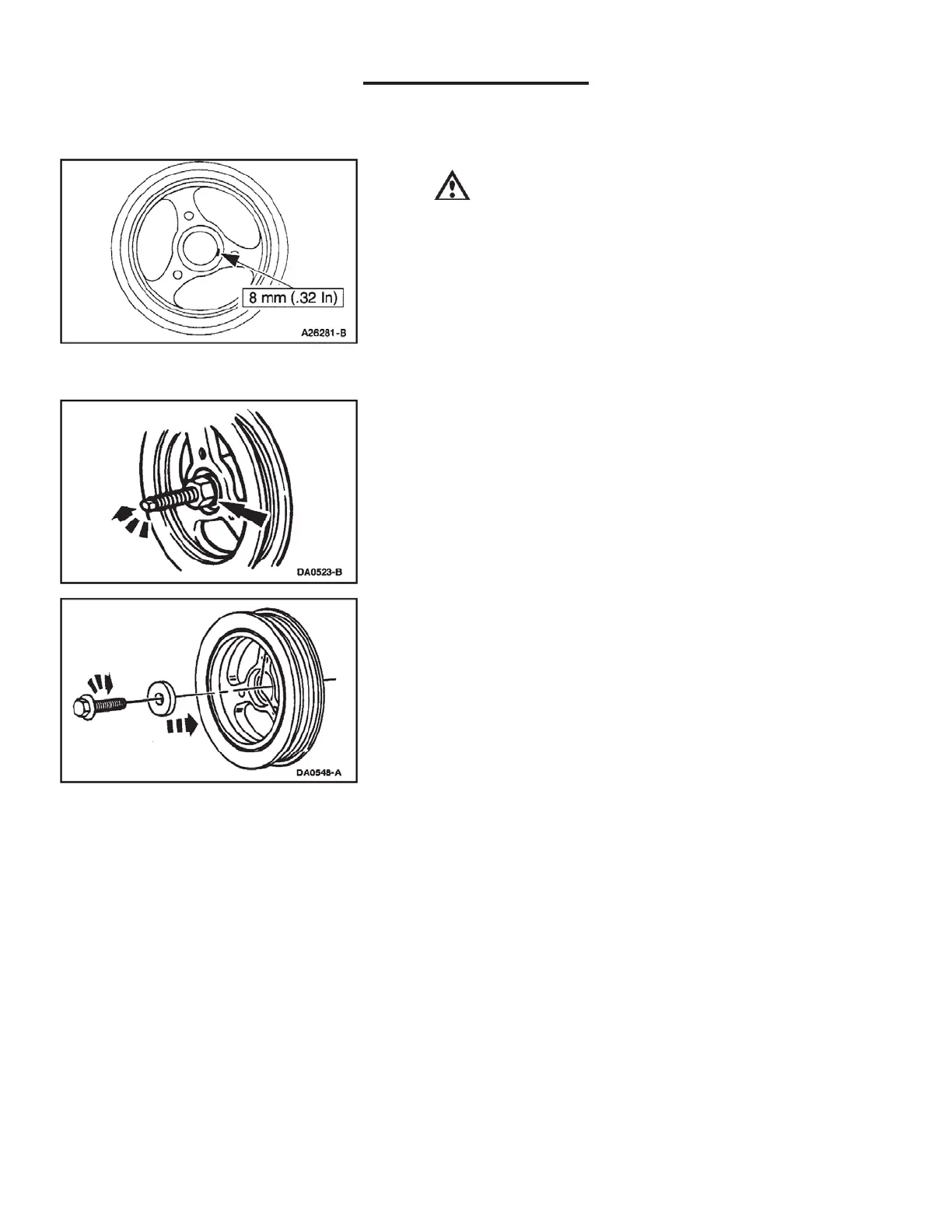

1. Use the Crankshaft Damper Replacer to install the crankshaft
pulley.
2. Tighten the crankshaft pulley bolt in four stages.
Stage 1: Tighten to 90 Nm (66 lb/ft).
Stage 2: Loosen 360 degrees.
Stage 3: Tighten to 47-53 Nm (35-39 lb/ft).
Stage 4: Tighten an additional 85-95 degrees.
