Section F - Operation
5. For sites with Aggregate export power limiting (PEL) enabled,
indicate, with a label, the maximum current setting for
backfeed from the solar system to the utility service that is
controlled by EPC.
For grid-forming systems, apply the label on the
IQSystemController3/3G dead front (below the transparent
breaker position cover for the mains breaker). Record the maximum
operating amps value on the label. The label is provided as part of
the IQSystem Controller Literature kit.

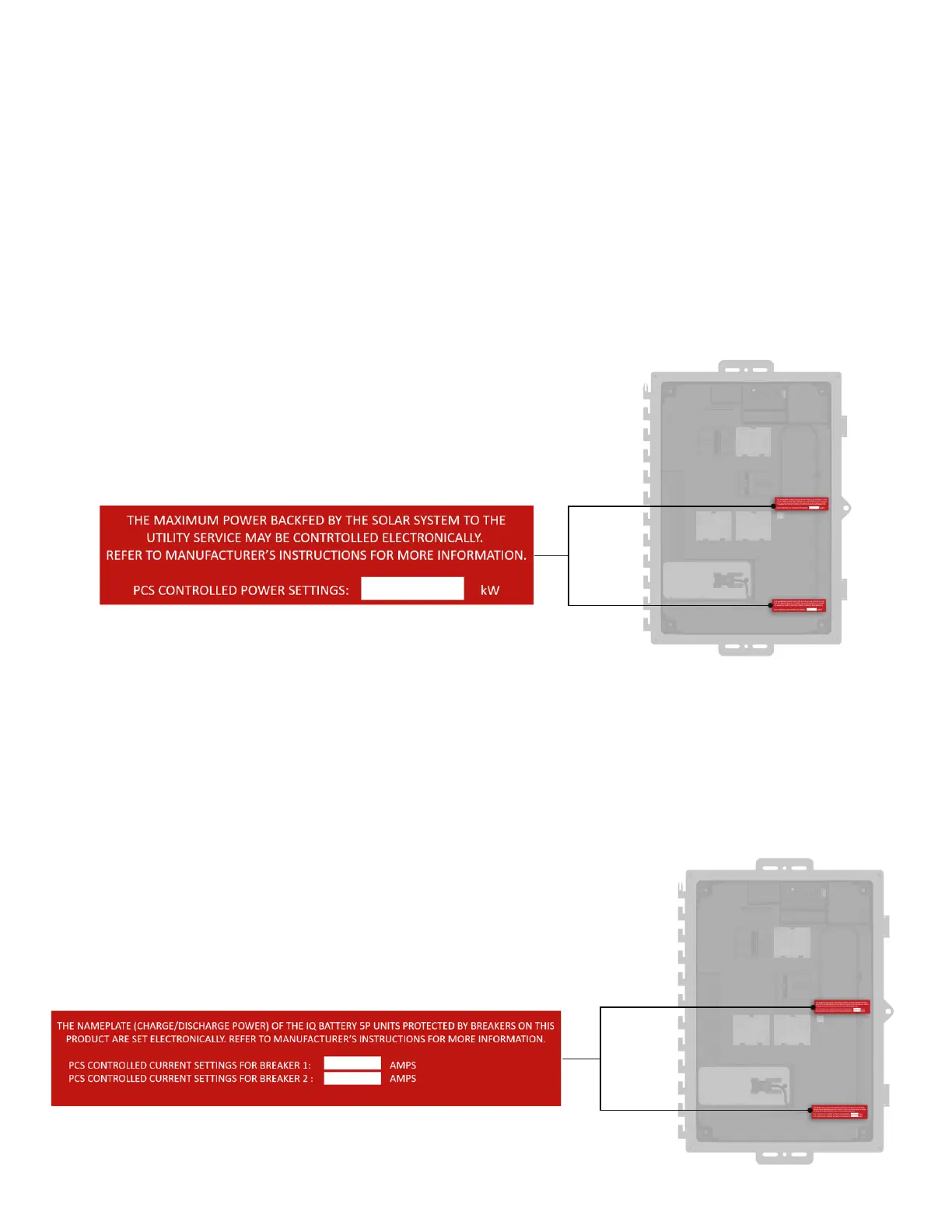

For grid-tied systems, apply the same label on the IQCombiner 5
dead front (in one of the two recommended position shown in the
image). Record the maximum operating amps value on the label. The
label is provided as part of the IQCombiner 5/5C accessory kit.
IQ Combiner 5/5C Quick Install Guide 48
6. For sites with IQBatteryOversubscription enabled, indicate,
with a label, the nameplate of the IQBattery5P units protected
by the breaker on the IQCombiner or IQSystemController.
For grid-forming systems, apply the IQBatteryOversubscription
label on the IQSystemController3/3G dead front (below
thetransparent breaker positions cover for mains breaker). Record
the maximum operating amps value on the label. The label is
provided as part of the IQSystemController Literature kit.
For grid-tied systems, apply the label on the IQCombiner5 dead
front (to the right of the lower breaker cover slots). The label is
provided as part of the IQCombiner5/5C accessory kit.
