Enraf Nonius 6 Series - Illustrations; Biphasic Pulsed Current TENS

87
1600751-4D
13 Illustrations

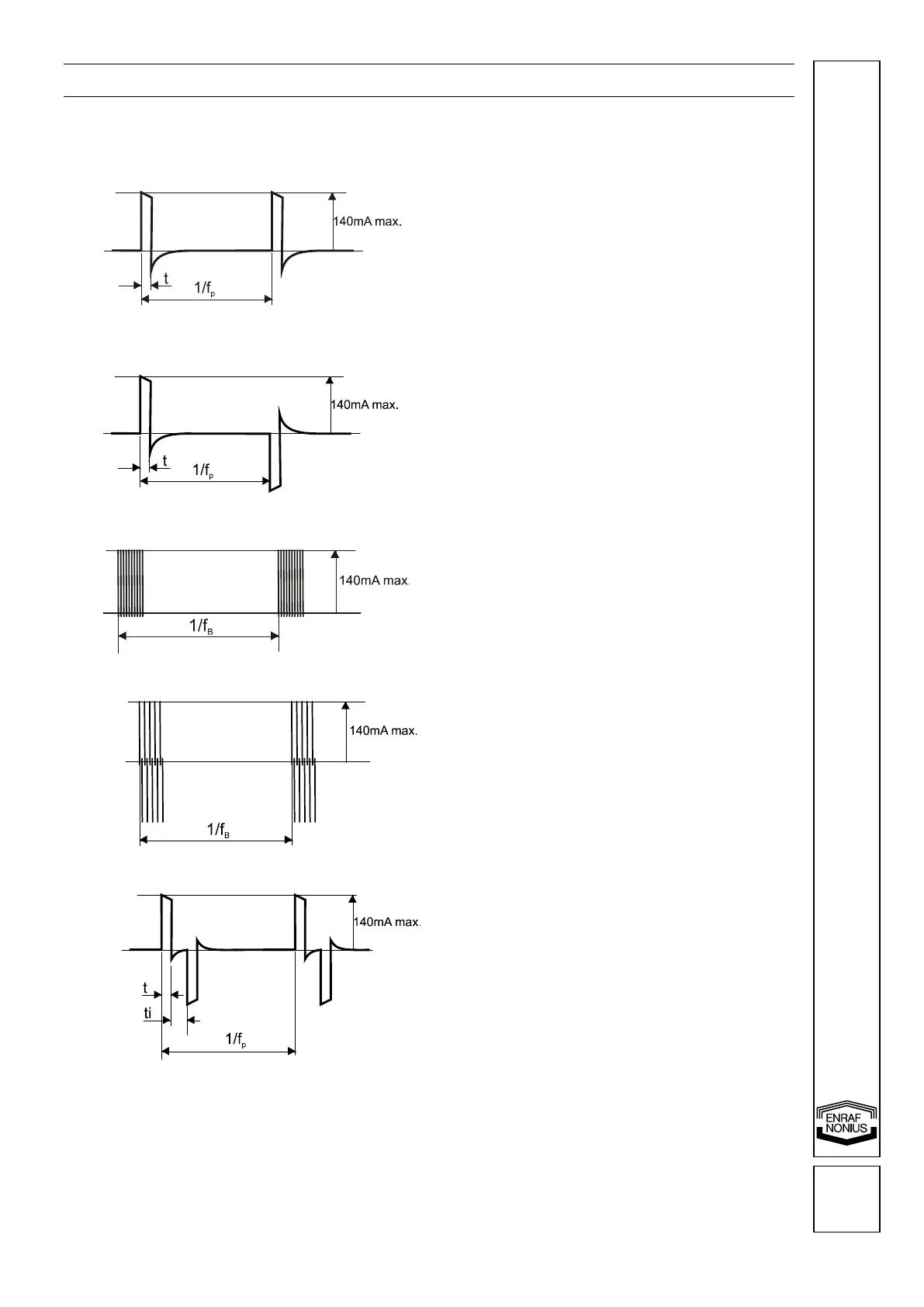

13.1 Biphasic Pulsed Current TENS
13.1.1 Asymmetrical

t Phase duration
f
p
Pulse frequency


13.1.2 Asymmetrical Alternating


t Phase duration
f
p
Pulse frequency


13.1.3 Burst Asymmetrical


f
B
Burst frequency 

13.1.4 Burst Asymmetrical Alternating
f
B
Burst frequency 

13.1.5 Symmetrical

t Phase duration 
t
i
Phase interval
f
p
Pulse frequency

13.1.6 Burst Symmetrical

f
B
Burst frequency 




