Entes MPR-45S - Page 47

47

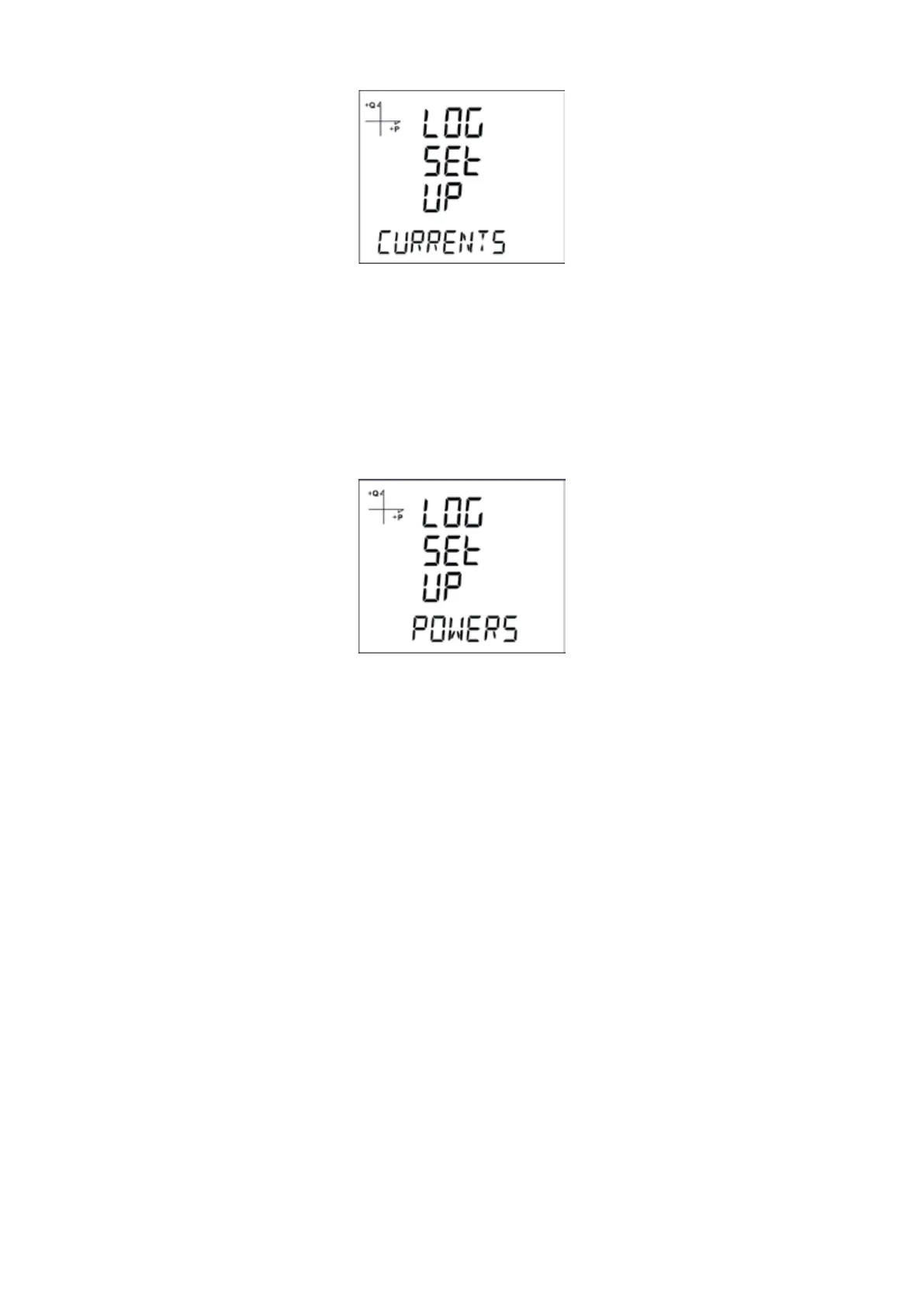

5.2.9.3 Current Settings
1. Press the SET button while Log Setup-Currents is displayed.
2. Current option is displayed. Press the SET button again.
3. Select Active or Passive with UP/DOWN buttons. Press the SET button.
4. Finish the selection by pressing the SET button.
5. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
5.2.9.4 Güç Ayarları
1. Press the SET button while Log Setup-Currents is displayed.
2. Current option is displayed. Press the SET button again.
3. Select Active or Passive with UP/DOWN buttons. Press the SET button.
4. If you select Active option, recording time interval selection will be active.
5. The recording interval appears as 60 seconds.
6. Finish the selection by pressing the SET button.
7. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
