EOS 94 00 Series User Manual

EN-12 Installation and Operating Instructions - EOS Compact DC/HC
EN Identification
2 Identification
The scope of delivery of the EOS Compact control unit includes a control
unit, a heater sensor with connecting cables for the sensor, and safety tem-
perature limiter. The unit is used to operate a sauna cabin.
EOS Compact is available in two models:
 EOS Compact DC: Finnish sauna mode
 EOS Compact HC: Finnish or steamy hot air bath mode
This documentation describes both models.
2.1 Scope of delivery
 Scope of delivery
Check the scope of delivery for completeness prior to installation.

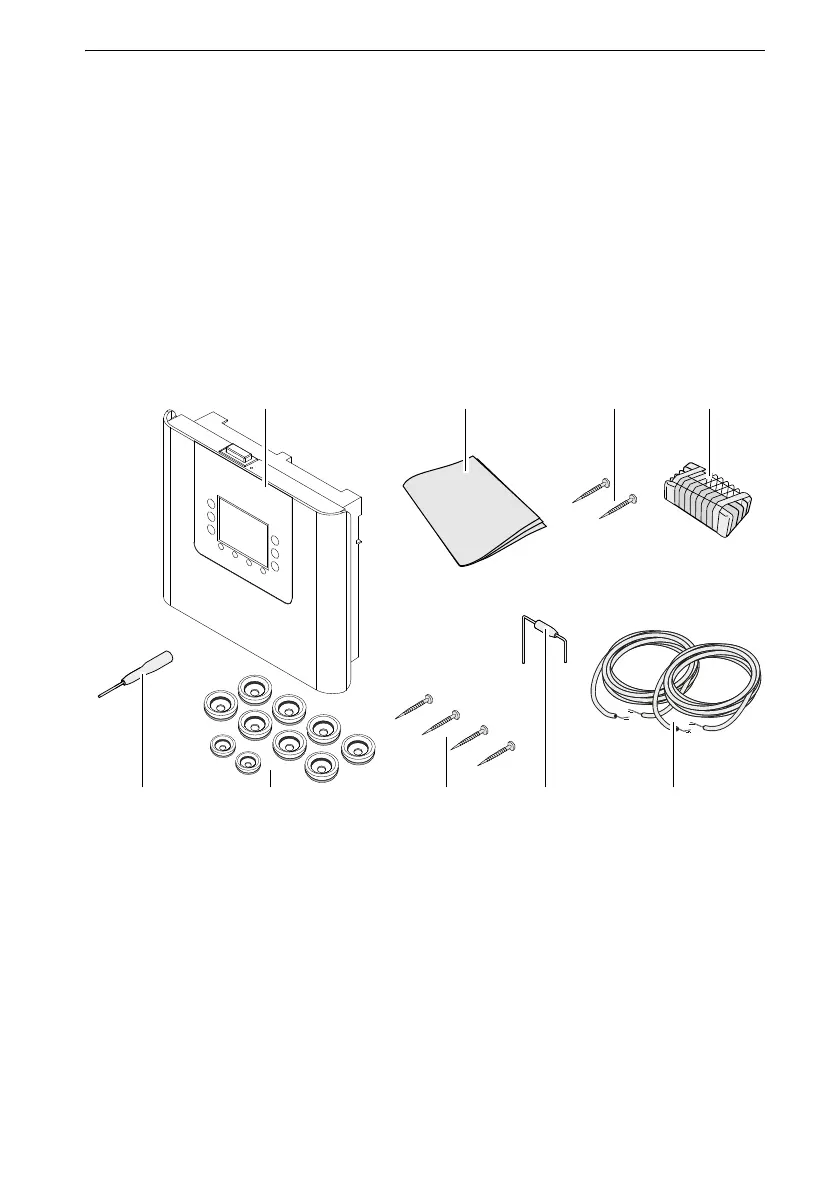

A EOS Compact control unit
B Installation and Operating
Instructions
C 2 screws to attach the heater sensor
(3 x 25 mm)
D Heater sensor with safety
temperature limiter
E Sensor cable (2 m) and safety
temperature limiter (2 m)
F Replacement safety temperature
limiter (in control unit housing)
G 4 screws to attach the control unit
(4 x 25 mm)
H Bushings: 8 large, 2 small
I Screwdriver 2 mm
B
E
A D
F GH I
C
