EOS Compact DC/HC - Installation and Operating Instructions EN-53
Connecting the lines
4.6 Potential-free contact
A potential-free contact is available on the circuit board. You can include
this NC contact in any electric circuit to switch an external load or transmit
a signal.

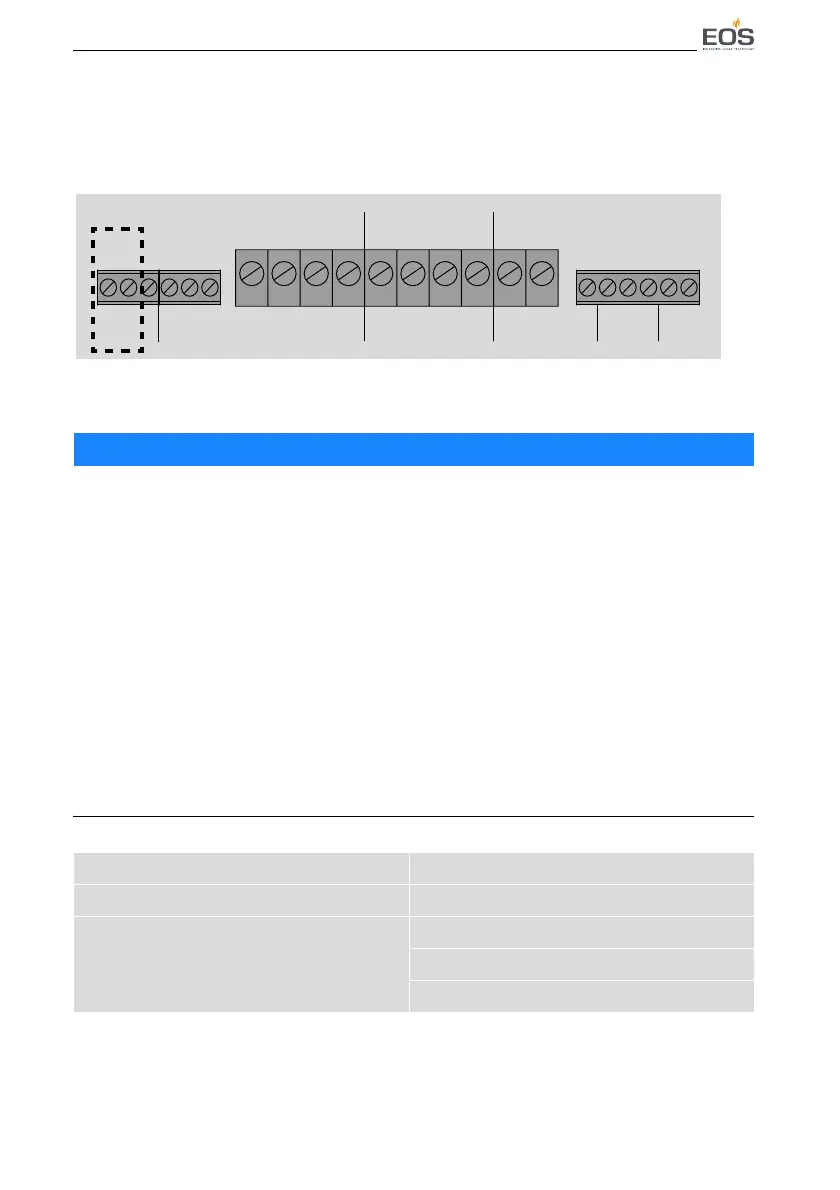

Connection for potential-free contact
Property damage due to short circuiting
The supply line can short circuit if you use the mains connections
L1, L2 or L3 to supply the electric circuit connected to the poten-
tial-free contact.
Use the control unit mains connections only for the sauna heat-
er.
Do not connect additional devices to the mains connections of
the control unit.
Connect the device connected to the potential-free contact
and ensure that it is protected from short circuiting.
Observe the maximum load of the potential-free contact.
Resistive load/alternating current Max. 250VAC/10A
Inductive load/alternating current 500 VA
Direct current Up to 30 V DC max. 10 A (300 W)
Up to 110 V DC max. 0.3 A (33 W)
Up to 220 V DC max. 0.12 A (26.4 W)
34N NV1 S1
L1 L2 L3 N NWV UNWB
WM FN F1 F2 LN LL
MAINS
OVEN
VAP.LSGPFC
