EOS 94 00 Series User Manual

EOS Compact DC/HC - Installation and Operating Instructions EN-41
Connecting the lines

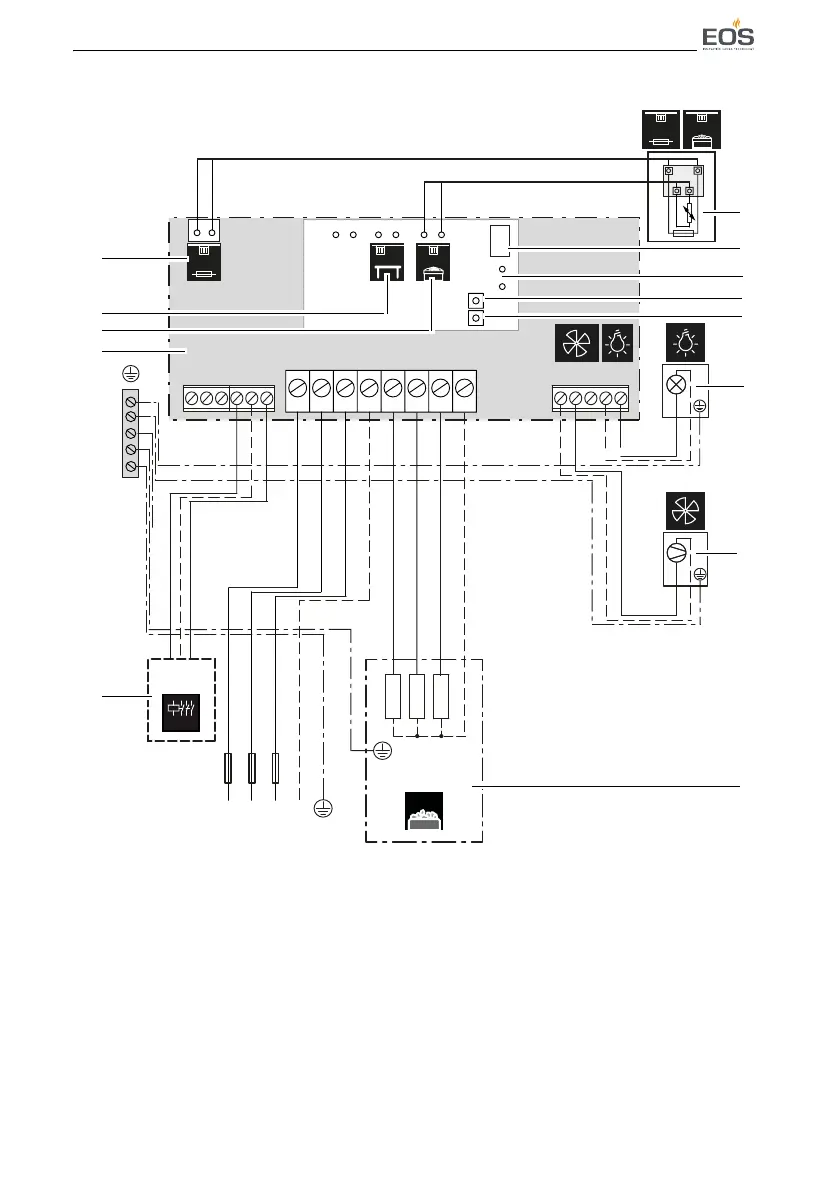

4.2 Circuit board assignment for EOS Compact DC
 Schematic view of connections for EOS Compact DC
A Output controller
B Potential-free contact
C Heater sensor connection
D Bench sensor connection (optional)
E Safety temperature limiter connec-
tion
F Heater sensor with safety
temperature limiter
G Sauna bus
H Control output
I Safety system jog dial
J Heating period limitation jog dial
K Cabin lighting
L Fan
M Sauna heater
PFC
34N NV1 S1
L1 L2 L3 N W V U N
RJ14
S-Bus
L1 L2 L3 N
400 V 3N AC
3x16A
NV1 S1
FN F1 F2 LN LL
STB
STB
P max. 10 kW
LSG
F
E
A
K
L
M
D
C
G
H
B
I
J
