EN-18 Installation and Operating Instructions - EOS Compact DC/HC
EN Installation
3Installation
3.1 Routing the lines
All lines should be routed before installing the control unit. The connec-
tions can be plugged in after installation, since the control unit’s front
panel can be removed.
Electronics malfunctions
Routing data and power supply lines together can lead to elec-
tronics malfunctions because, e.g. because the sensor will not be
detected.
Do not route sensor and sauna bus lines together with power
supply lines.
Route cable conduits separately.
Data lines must be routed and connected in such a way that they are not
openly accessible. They should be routed between the insulation and the
outer wall of the cabin. Cabin insulation must be installed in such a way
that the temperature in the area in which cables are routed
cannot exceed 65°C.
If the data lines are installed outside on the wall, they should be protected
by a cable duct.

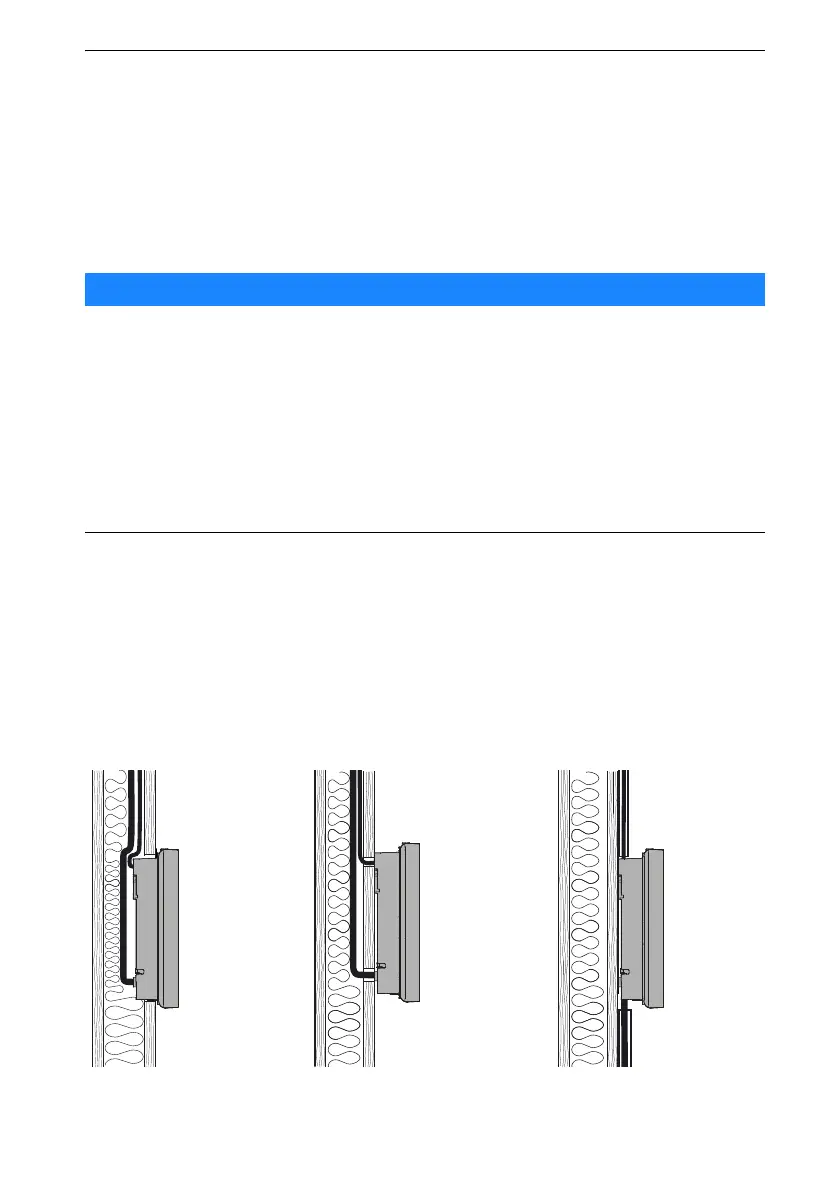

Data line(s) routing
