EOS Compact DC/HC - Installation and Operating Instructions EN-45
Connecting the lines
Connect the module (optional)
WARNING! Ensure that the control unit has no power.

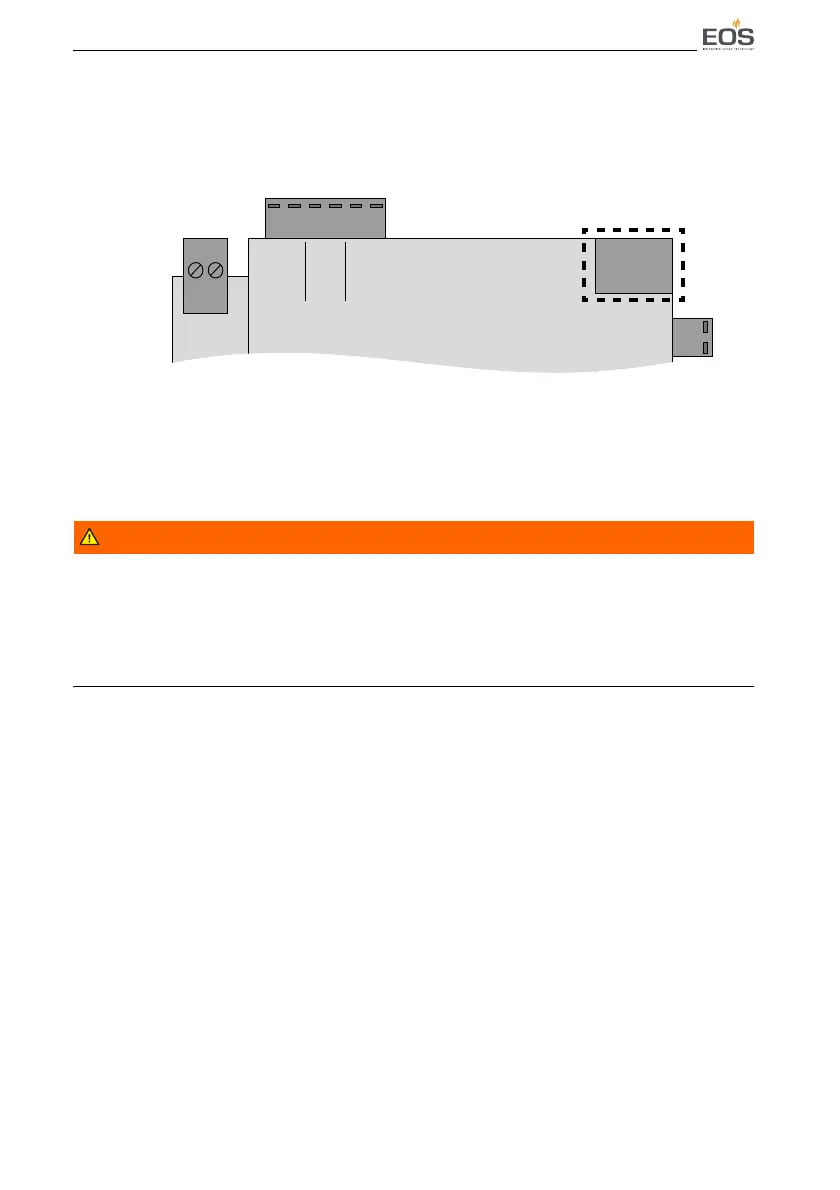

Insert the cable with the RJ14 plug from the module into the top S-BUS
jack.
Connect a module distributor if you want to connect more than one
module. See 2.5 Accessories, EN-16.
4.5 Connecting the consumer lines
Risk of electric shock
There is a risk of electric shock when connecting the cables if the
control unit is connected to the power supply.
Ensure that the control unit has no power.
Required tools:
Flathead screwdriver
The front cover must be removed for the following steps. See: Removing
the front cover, EN-23.
STB
Multi
Sens.
Bench
Sens.
Oven
Sens.
S-BUS
