EN-46 Installation and Operating Instructions - EOS Compact DC/HC
EN Connecting the lines

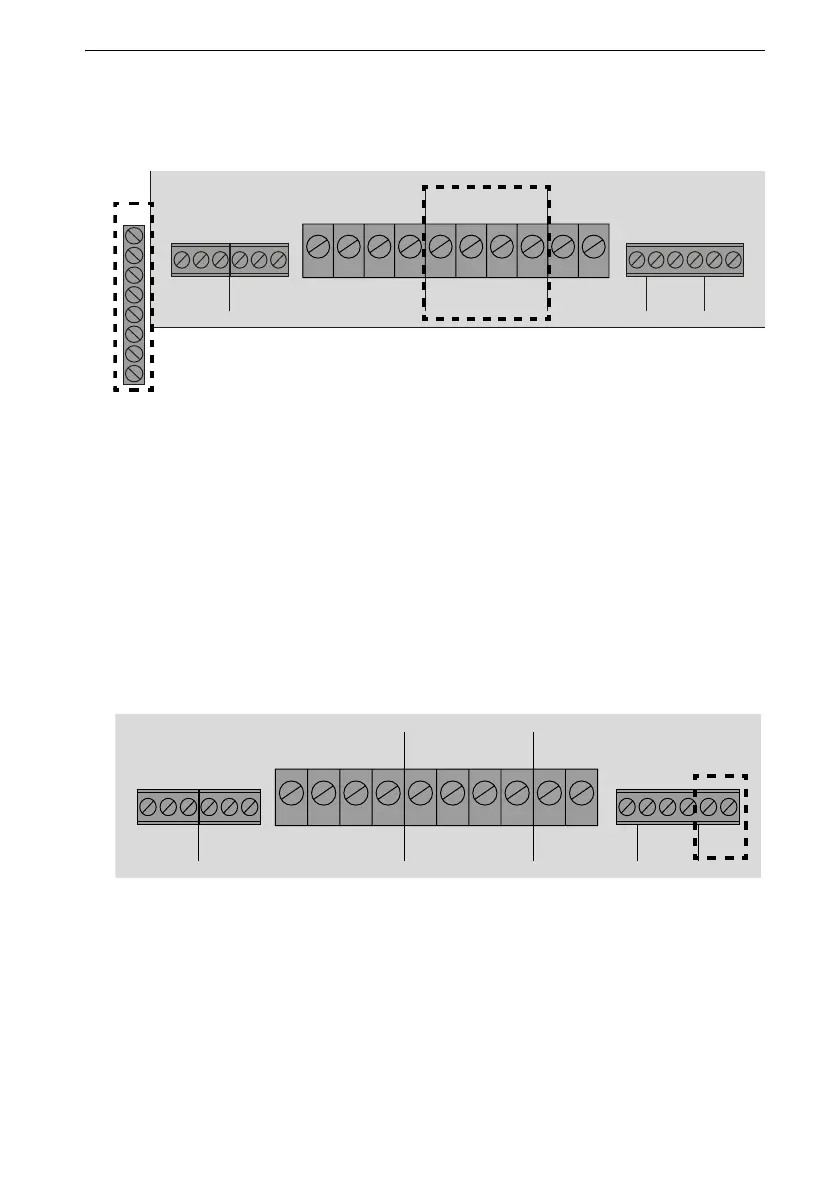

Connecting the heater
1 Connect the cable from the sauna heater to the four terminals (heater)
W, V, U, N and PE.
Always connect the neutral conductor N of the sauna heater as well,
because in humidity mode, one phase is rerouted from the sauna
heater to the vaporiser. This results in an asymmetrical heating load
and power flows through the neutral conductor.
The switching output of the control unit for the sauna heater has a
max. of 10 kW resistive load. It can be expanded as needed by an
optional output controller (LSG) so that it is possible to connect
sauna heaters with an output greater than 10 kW.
Connecting the cabin light
1 Connect the cable of the sauna lighting to the two terminals LN and LL.
34N NV1 S1
L1 L2 L3 N NWV UNWB
WM FN F1 F2 LN LL
MAINS
OVEN
VAP.LSG
(PE)
34N NV1 S1
L1 L2 L3 N NWV UNWB
WM FN F1 F2 LN LL
MAINS
OVEN
VAP.LSGPFC
