Identification
2.2 Nameplate
The nameplate is attached to the top of the control panel housing cover.

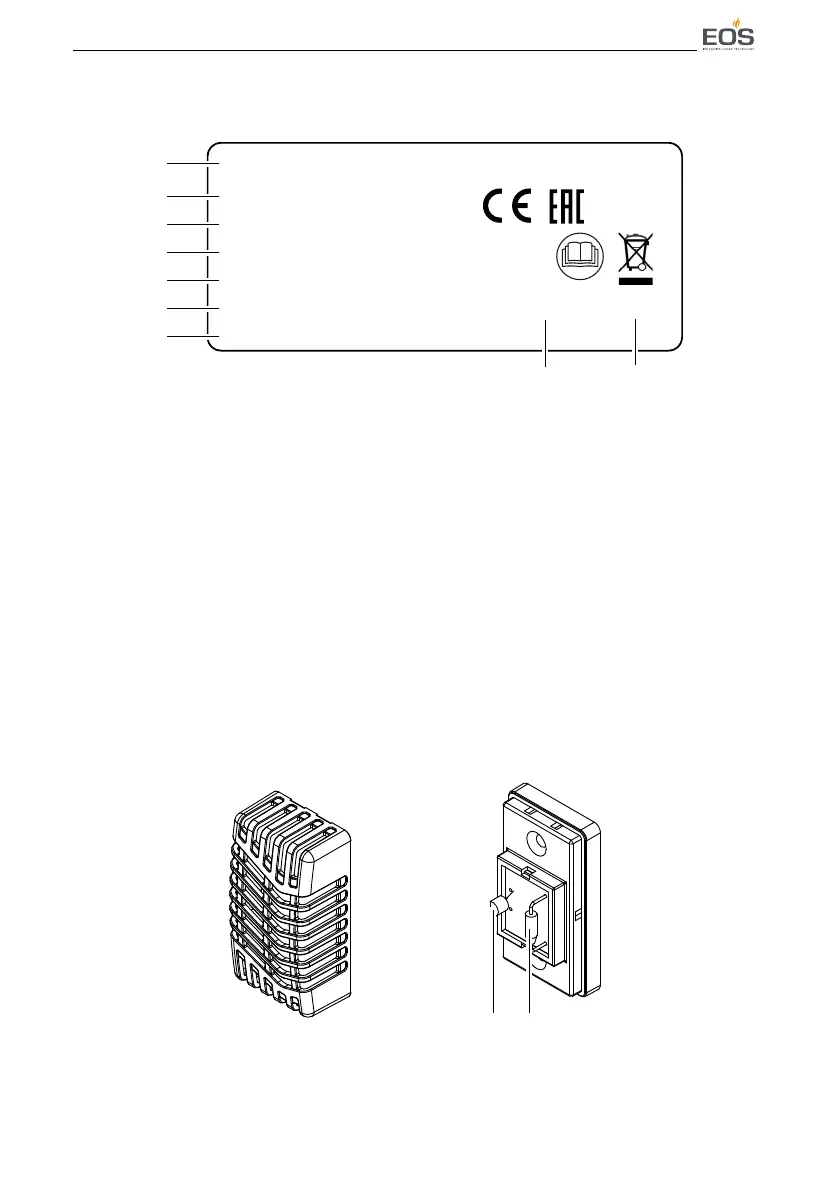

 Nameplate (example)
2.3 Sensors
Heater sensor
The temperature/humidity in the sauna cabin is set via the control unit. The
set values are checked by the sensor. The heater sensor controls the tem-
perature in the sauna cabin. The heater sensor has a safety temperature
limiter, which ensures that the temperature does not exceed 140°C.
 Internal view of heater sensor
A Name
B Model
C Item number
D Operating voltage
E Switching output
F Country of origin
G Manufacturer
H Manufacturing date
I Serial number
A Temperature sensor B Safety temperature limiter
Saunasteuergerät / Control unit
Type EOS Compact
Art. Nr. 94 XXXX 00
400 V 3N AC 50 Hz
Max. Schaltleistung 10 kW
Made in Germany
EOS SAUNATECHNIK GmbH, Schneiderstriesch 1, 35759 Driedorf
S-No. 0121 00001
IPX4
A
B
C
D
E
F
G
H
I
A B
