EN-44 Installation and Operating Instructions - EOS Compact DC/HC
EN Connecting the lines

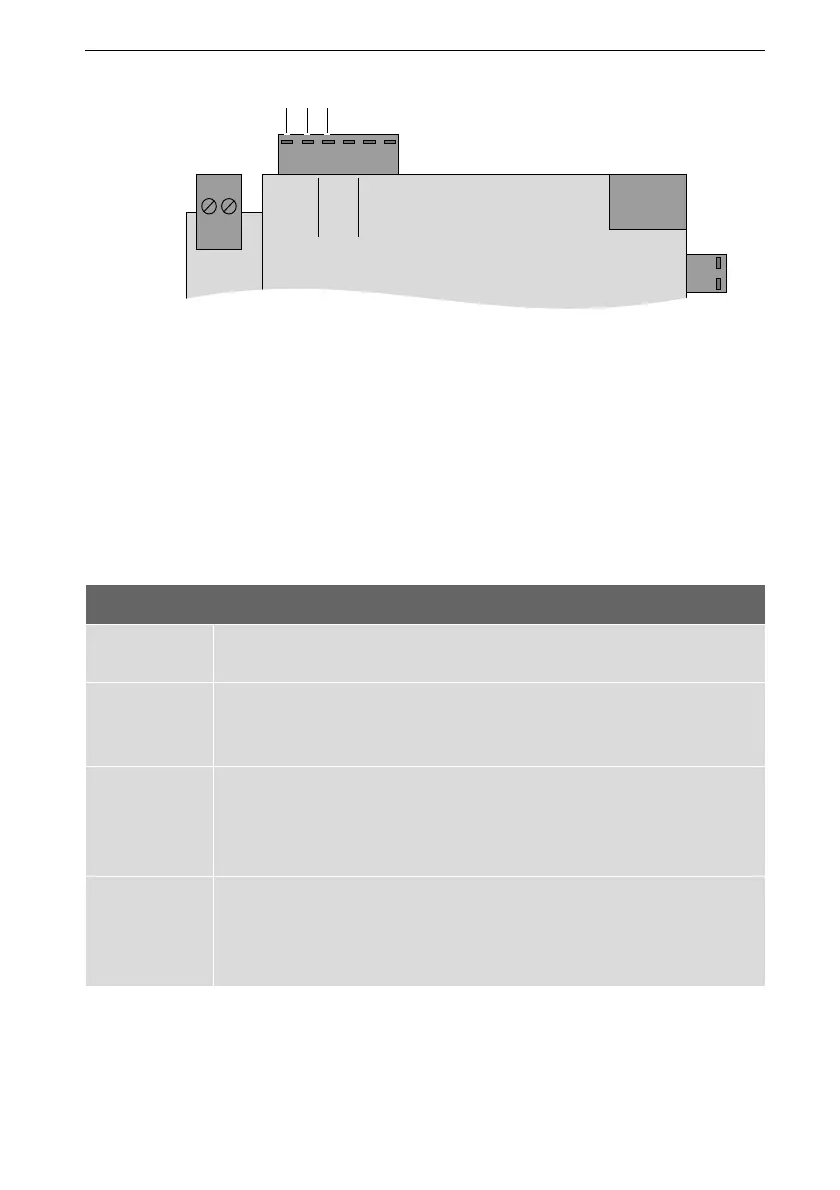

If a bench sensor is connected, plug both the bench sensor cable and
the multisensor cable into (C) Bench Sens..
If Multisensor and Bench Sensor are connected simultaneously, the
control unit detects this automatically.
4 Plug the terminal plug into the circuit board again as assigned.
4.4 Connecting optional modules
The EOS Compact control unit has a jack for sauna bus cables, which can be
connected via the optional modules.
For the item number, see Add-on modules, EN-16.
The front cover must be removed for the following steps. See: Removing
the front cover, EN-23.
Add-on modules
SBM remote
start
With the SMB remote start module, the sauna cabin can be
switched on and off remotely with a button.
SBM-HOT With the SMB-HOT module, an intense heat-up phase of the
sauna heater can be triggered. The heat-up phase can be trig-
gered manually by pressing the button.
SBM-ECO With the SBM-ECO module, the temperature of the sauna cabin
can be lowered to a preset minimum heat level. This makes it
possible to keep the sauna cabin warm at a low, energy-saving
temperature when it is not in use.
SBM-KNX
SBM-Mod
The KNX module and Modbus module are intended to be con-
nected to a building management system. They facilitate the
remote control of various functions for sauna heaters with or
without a vaporiser.
STB
Multi
Sens.
Bench
Sens.
Oven
Sens.
S-BUS
