EN-42 Installation and Operating Instructions - EOS Compact DC/HC
EN Connecting the lines
4.3 Connecting the sensor cables
Risk of electric shock
There is a risk of electric shock when connecting the cables if the
control unit is connected to the power supply.
Ensure that the control unit has no power.
Required tools:
Flathead screwdriver
The front cover must be removed for the following steps. See: Removing
the front cover, EN-23.
The cables are connected respectively to plugs that can be removed from
the circuit board. These plugs should be removed so that the cables can be
connected easily and safely. When the cables are connected, the plugs are
plugged in again to the respective terminals on the circuit board.

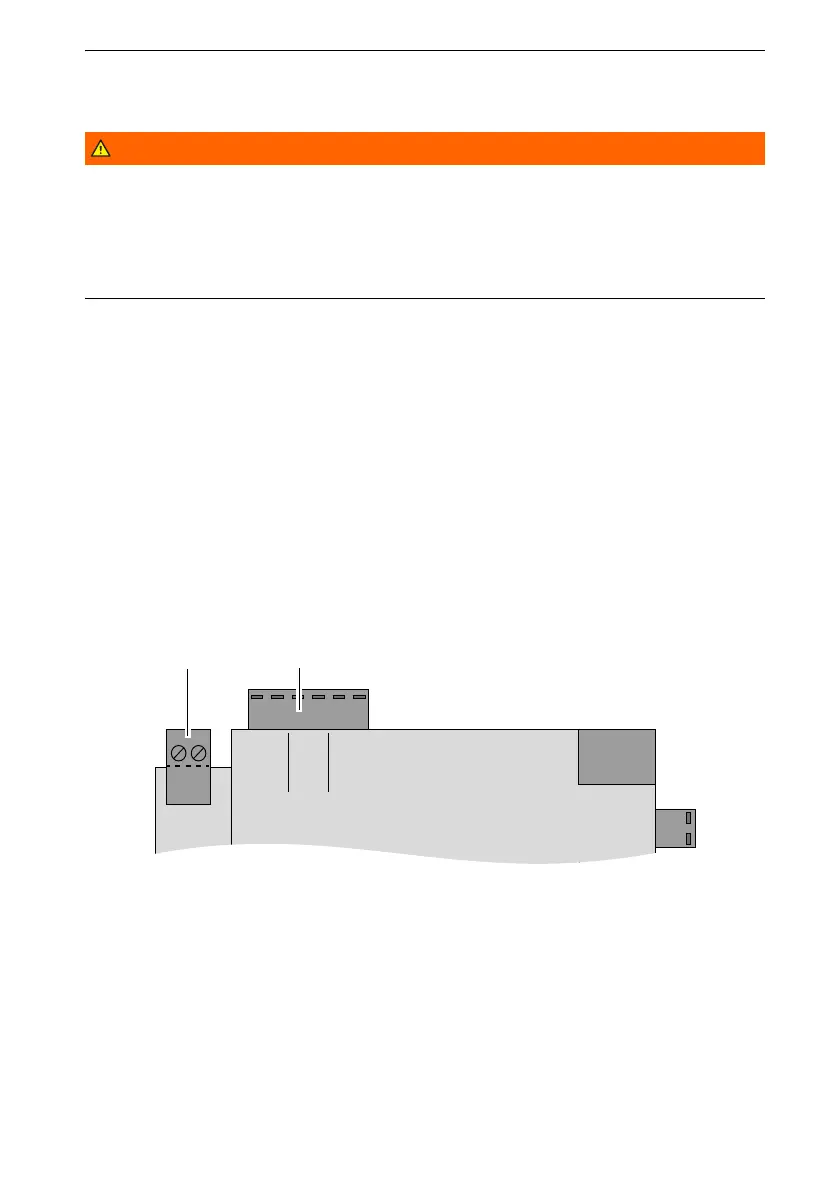

A Terminal plug for safety
temperature limiter
B Sensor for safety temperature limiter
STB
Multi
Sens.
Bench
Sens.
Oven
Sens.
S-BUS
