EN Connecting the lines
4.1 Circuit board assignment for EOS Compact HC

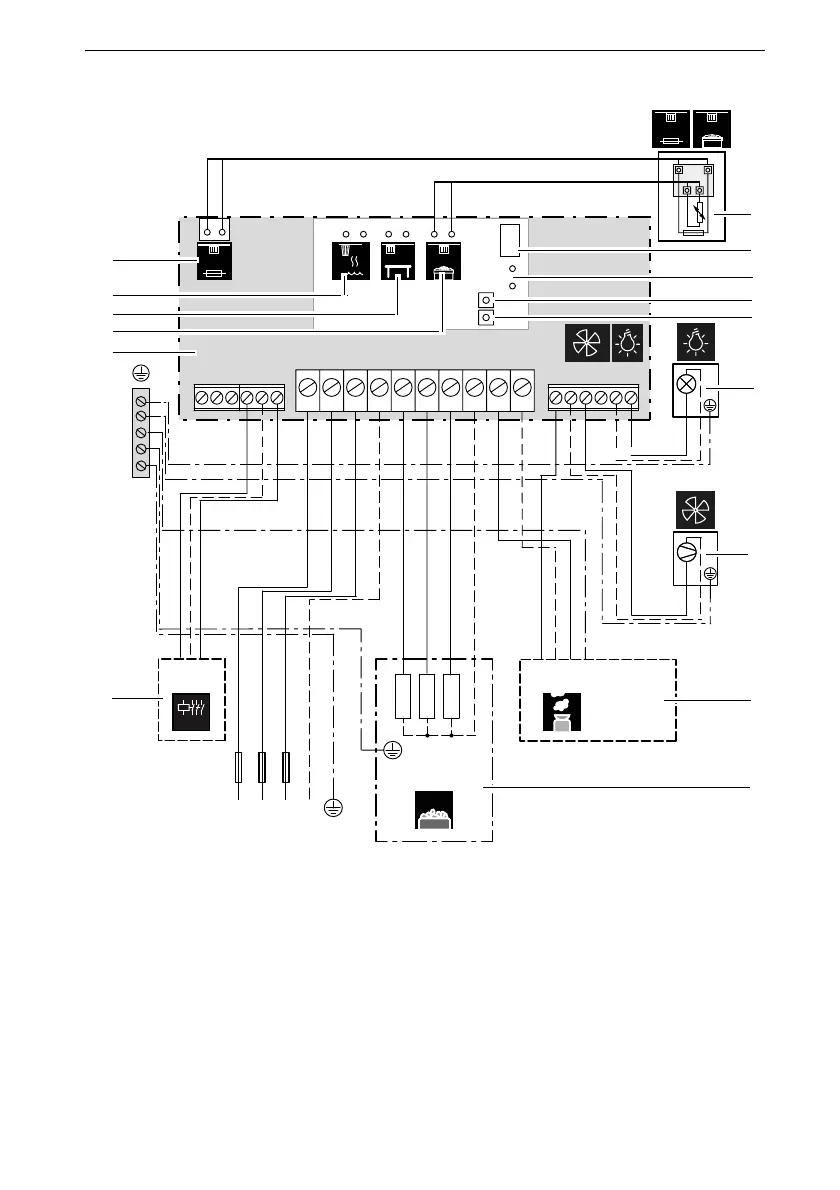

 Schematic view of connections for EOS Compact HC
A Output controller
B Potential-free contact
C Heater sensor connection
D Bench sensor connection (optional)
E Multisensor connection (optional)
F Safety temperature limiter
connection
G Heater sensor with safety
temperature limiter
H Sauna bus
I Control output
J Safety system jog dial
K Heating period limitation jog dial
L Cabin lighting
M Fan
N Vaporiser
O Sauna heater
PFC
34N NV1 S1
L1 L2 L3 N NWV UNWB
RJ14
S-Bus
L1 L2 L3 N
400 V 3N AC
3x16A
NV1 S1
WM FN F1 F2 LN LL
STB
STB
P max. 3 kW
P max. 10 kW
Wb PEWm N
LSG
G
F
E
A
L
M
N
O
D
C
H
I
B
J
K
