EOS Compact DC/HC - Installation and Operating Instructions EN-47

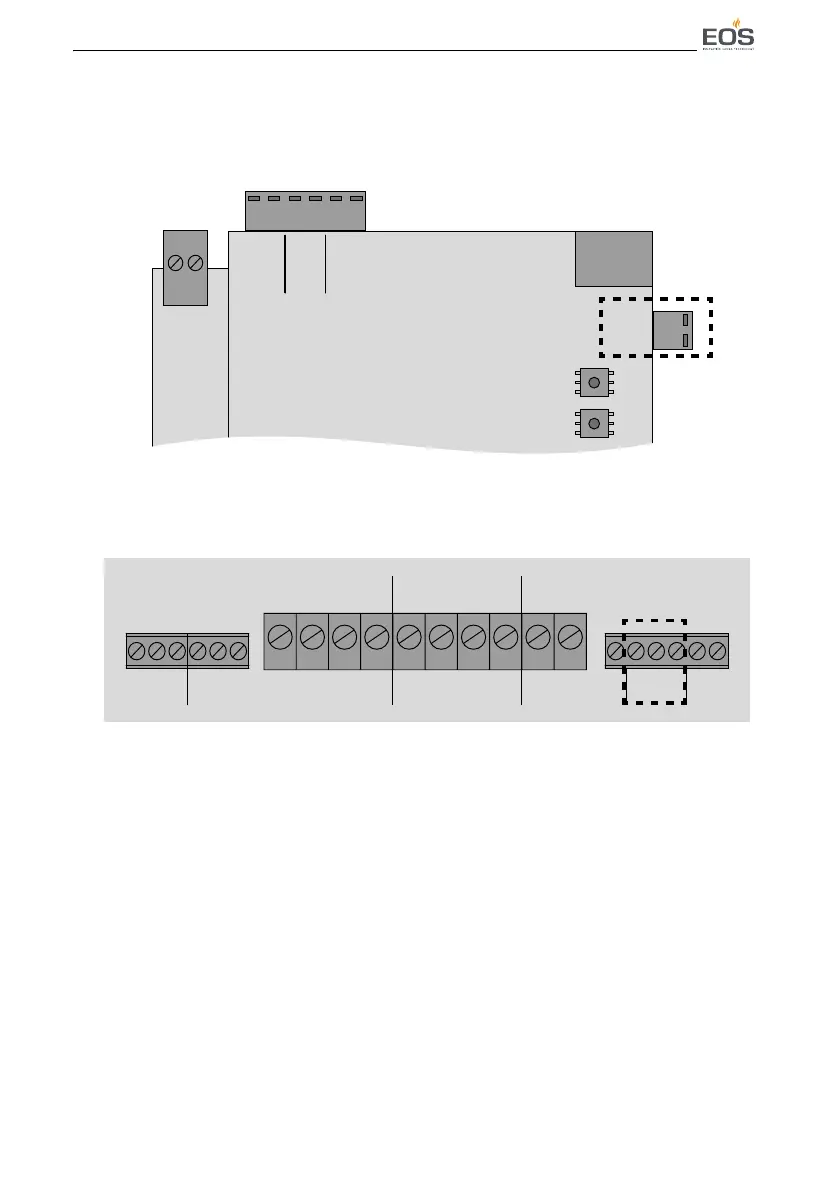

Connecting the lines
2 Connect the ballast (optional) cable DIM+ and DIM- to the control out-
put WS and BL.
Ballast: Mean Well PWM-60-24 for LEDs 24 V 60 W. The ballast must
be supplied separately with power.
Connecting the fan
1 Connect the fan to the two terminals FN and F1.
If the fan is a double-phase fan, connect the higher fan phase to F1
(full power) and the lower fan phase to F2 (lower power).
If a single-phase fan is connected or fan phase 1 is set, only output F1
is supplied with power. See
5.1 Setup, EN-55.
5.4 Fan function, EN-59.
STB
Multi
Sens.
Bench
Sens.
Oven
Sens.
S-BUS
WS
BL
34N NV1 S1
L1 L2 L3 N NWV UNWB
WM FN F1 F2 LN LL
MAINS
OVEN
VAP.LSGPFC
