A-6
Enhancing Your Printer With Options
R4C4620
Rev. C
A5 size OPTIONS.FM
6/14/00 Pass 3
L
Proof Sign-off:
SEI Y.Ohkawara T.Takahashi
T.Takahashi
SEI M.Kauppi K.Blair
Installing an optional cut-sheet feeder
You install the single-bin, high-capacity, and double-bin cut-sheet
feeders in the same way. Follow the steps in this section.
Note:
Before you install the double-bin cut-sheet feeder, you need to assemble
it as described on “Assembling the double-bin cut-sheet feeder” on page
A-16.

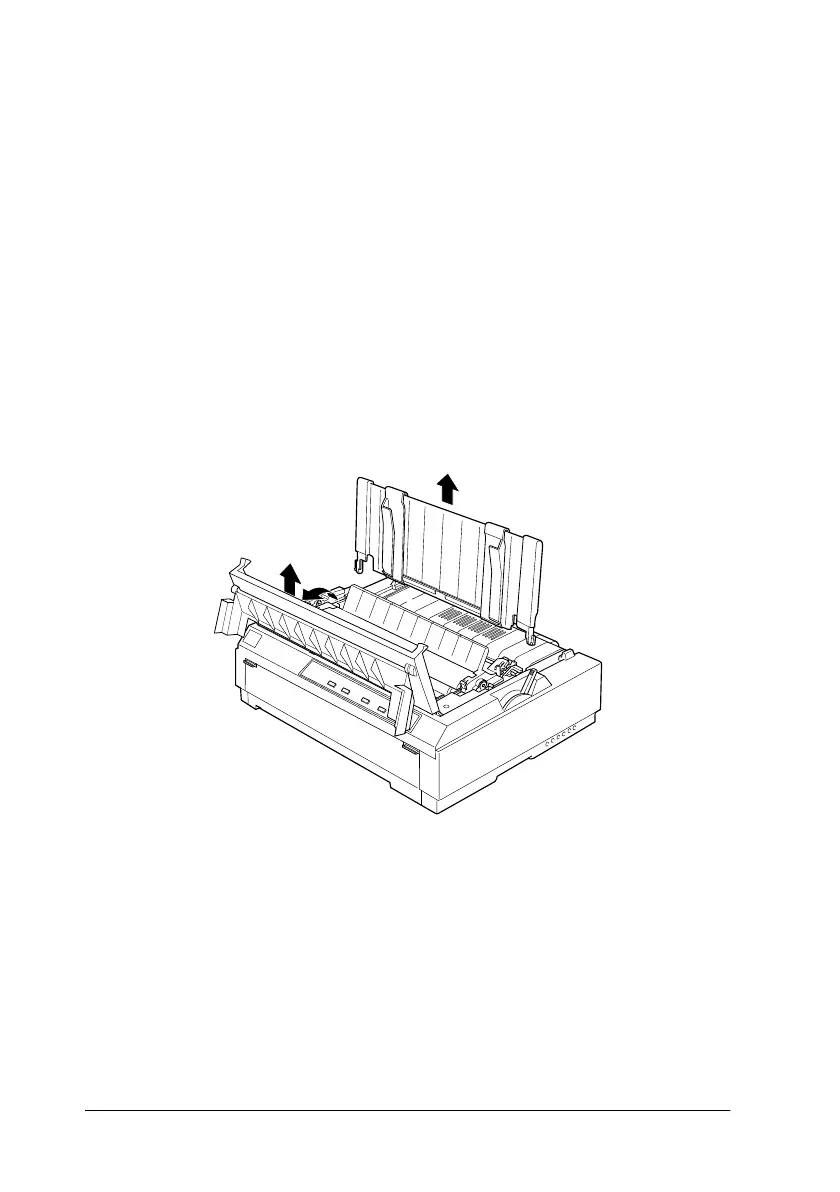

1. Make sure the printer is turned off. Then remove the paper
guide by moving it to the upright position and pulling it
straight up. Lift the printer cover by its back edge and then
pull it straight up and off the printer.
