1-14
Setting Up the Printer
R4C4620
Rev. C
A5 size SETUP.FM
6/14/00 Pass 3
L
Proof Sign-off:
SEI Y.Ohkawara T.Takahashi
T.Takahashi
SEI M.Kauppi K.Blair
Connecting the Printer to Your Computer
Your printer has two separate interface connections: an IEEE-1284
compatible parallel interface and Type B optional interface. See
“Optional interface cards” on page A-4 for more information.
If your computer requires a different type of printer interface, you
should be able to use one of the optional interfaces described on
“Optional interface cards” on page A-4.
Follow the steps below to connect the printer to your computer
using a parallel interface connector, or a ground wire connector.
1. Make sure both the printer and computer are turned off.

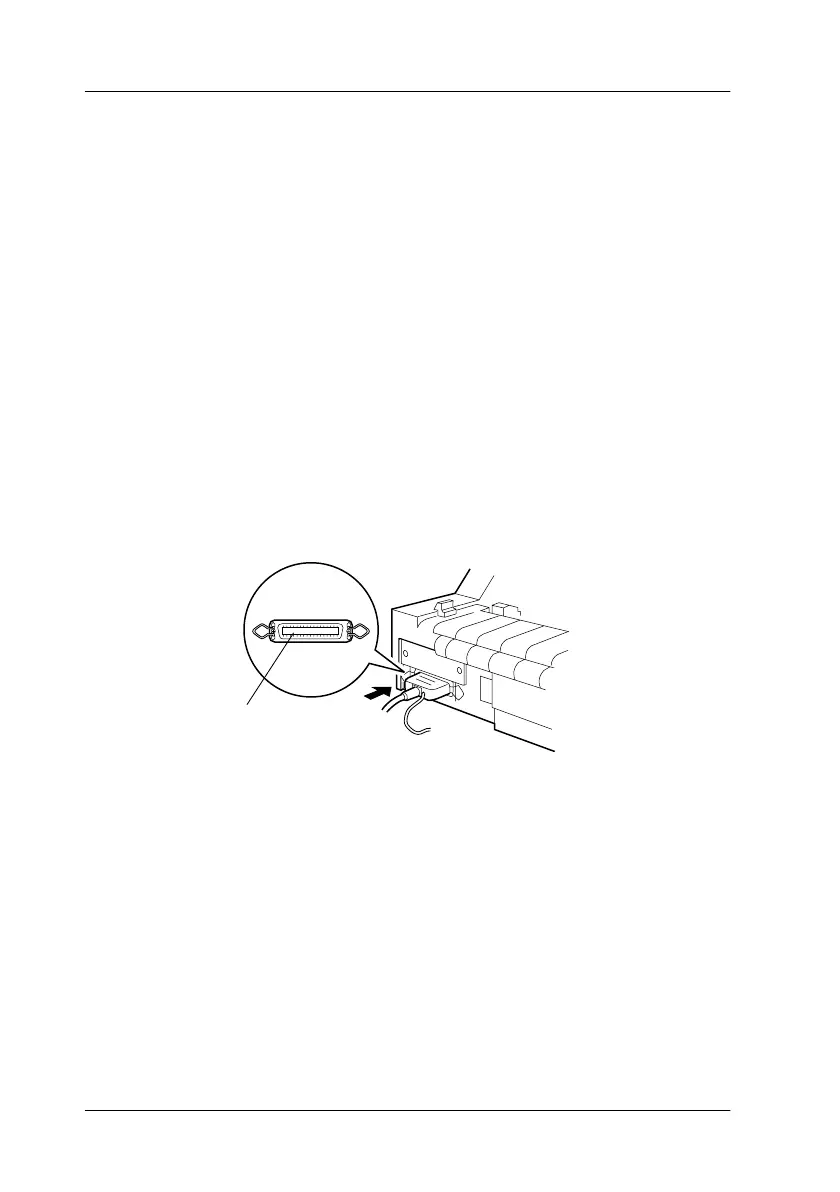

2. Plug the cable connector securely into the parallel interface
connector.
.
parallel interface
connector
To Next Page
