Setting Up the Printer
1-15
R4C4620
Rev. C
A5 size SETUP.FM
6/14/00 Pass 3
R
Proof Sign-off:
SEI Y.Ohkawara T.Takahashi
T.Takahashi
SEI M.Kauppi K.Blair

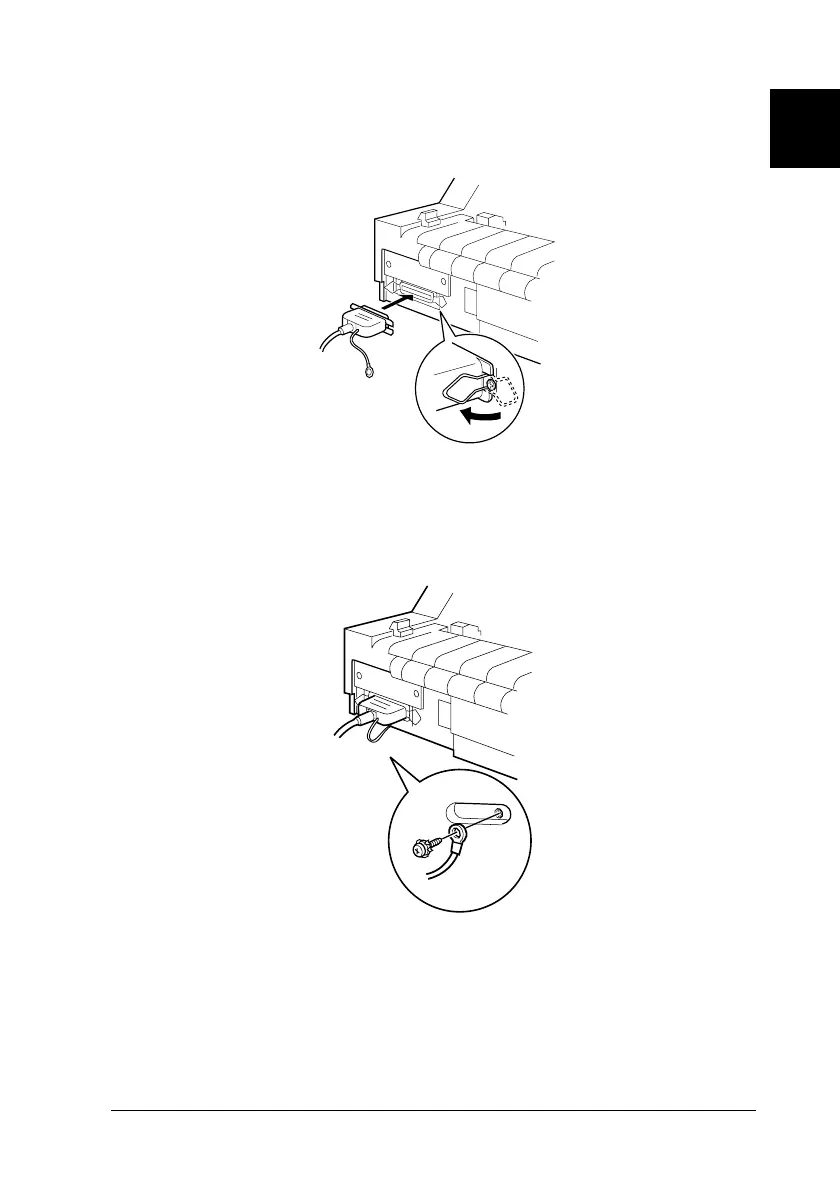

3. Squeeze the wire clips together until they lock in place on both
sides of the connector.
4. If your cable has a ground wire, connect it to the printer’s
ground connector as shown below.
5. Plug the other end of the cable into the computer.
After you connect the printer to your computer, install the printer
software as described in the next section.
