Disassembly and Assembly Printer Mechanism Disassembly 80
4.3.4 Printer Mechanism
1. Perform Pre-Disassembly. (p.70)
2. Remove the Upper Housing. (p.72)
3. Remove the shield cover.(See Figure 4-8)
4. Disconnect all the connectors connected to the C524MAIN board.
(See Figure 4-9)
5. Remove the 2 CBP (M3x8) screws securing the MOUNT HOUSING to the lower
housing, and remove the MOUNT HOUSING. (See Figure 4-16)
6. Remove the 4 CBB (W13, M3x14) screws, and remove the Printer Mechanism by
lifting it up.

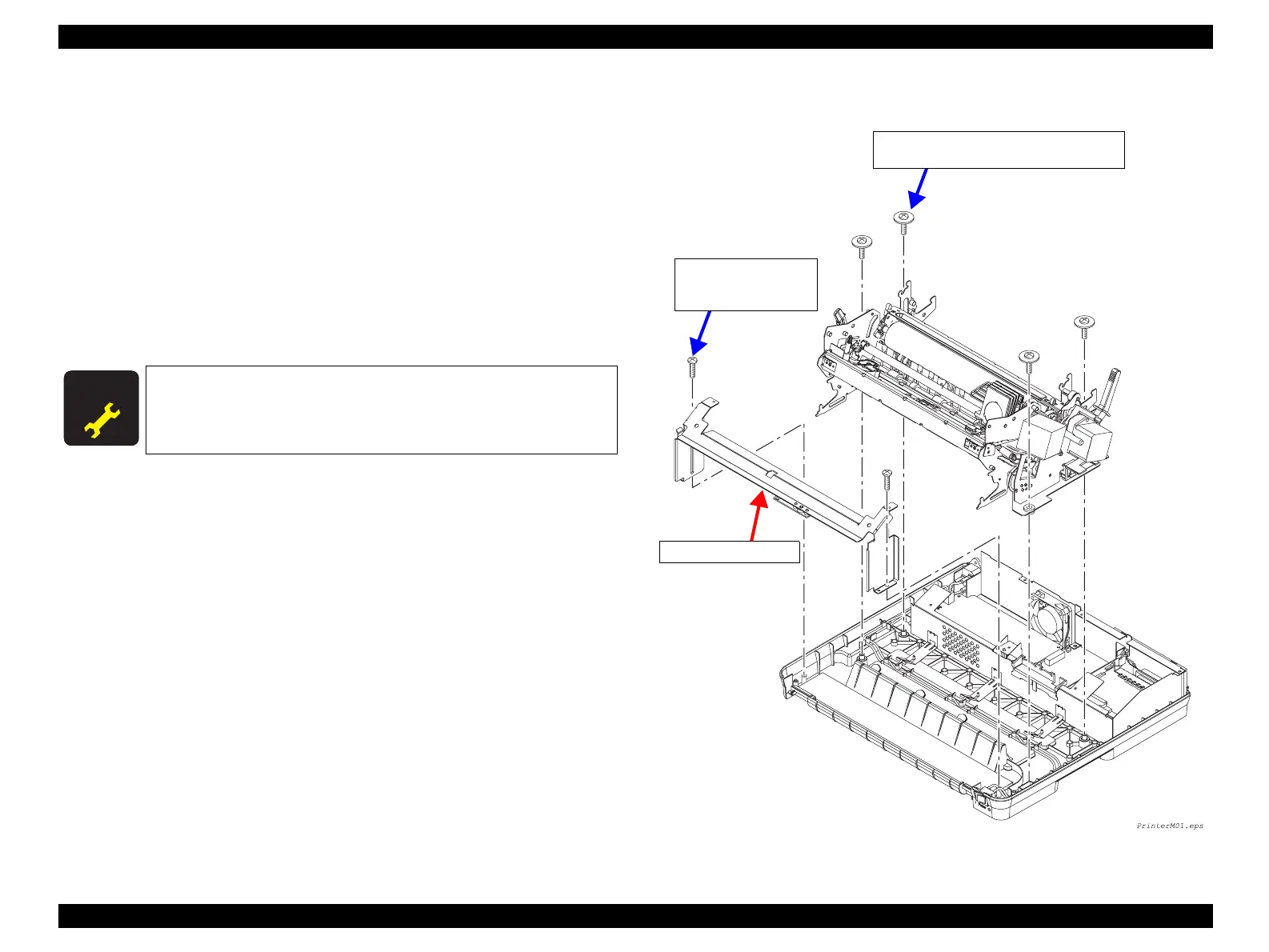

Figure 4-16. Printer Mechanism Removal 1
A D J U S T M E N T
R E Q U I R E D
After installing the Printer Mechanism, make the following
adjustment:
• Bi-d Adjustment (p.101)
CBB (W13, M3x14) Screws x4
Tightening Torque: 1.1±0.1N.m
CBP Screws (3x8) x2
Tightening Torque
: 1.1±0.1N.m
MOUNT, HOUSING
