EPSON FX-890/2190 Revision B
Disassembly and Assembly Printer Mechanism Disassembly 81
4.3.5 CR Motor
1. Remove the Printer Mechanism. (p.80)
2. Release the tension spring. (See Figure 4-17)
3. Disengage the TIMING BELT,CR from the CR Motor pinion and hang it on the
Hanger.

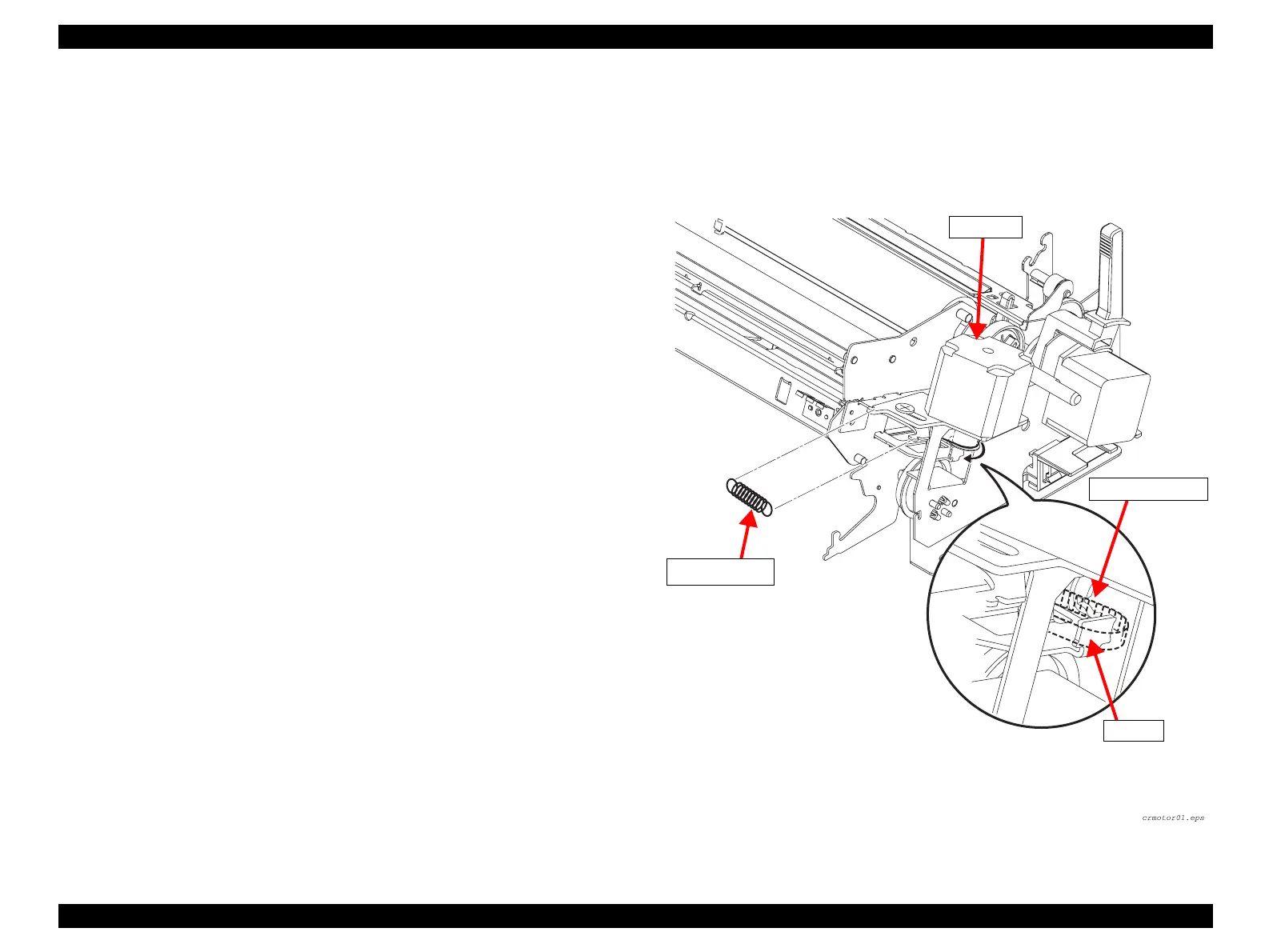

Figure 4-17. CR Motor Removal 1
Tension Spring
CR Motor
TIMING BELT,CR
Hanger
