EPSON FX-890/2190 Revision B
Disassembly and Assembly Printer Mechanism Disassembly 83
4.3.6 PF Motor
1. Remove the Printer Mechanism. (p.80)
2. Release the motor harness from the Printer Mechanism. (See Figure 4-19)
3. Locate the release lever (Lever, Release) in the forefront position (Tractor
Position).
4. Remove the 2 (CBS (M3x10), CB (M3x8)) screws securing the PF Motor to the
FRAME,SUB,RIGHT, and remove the PF Motor.

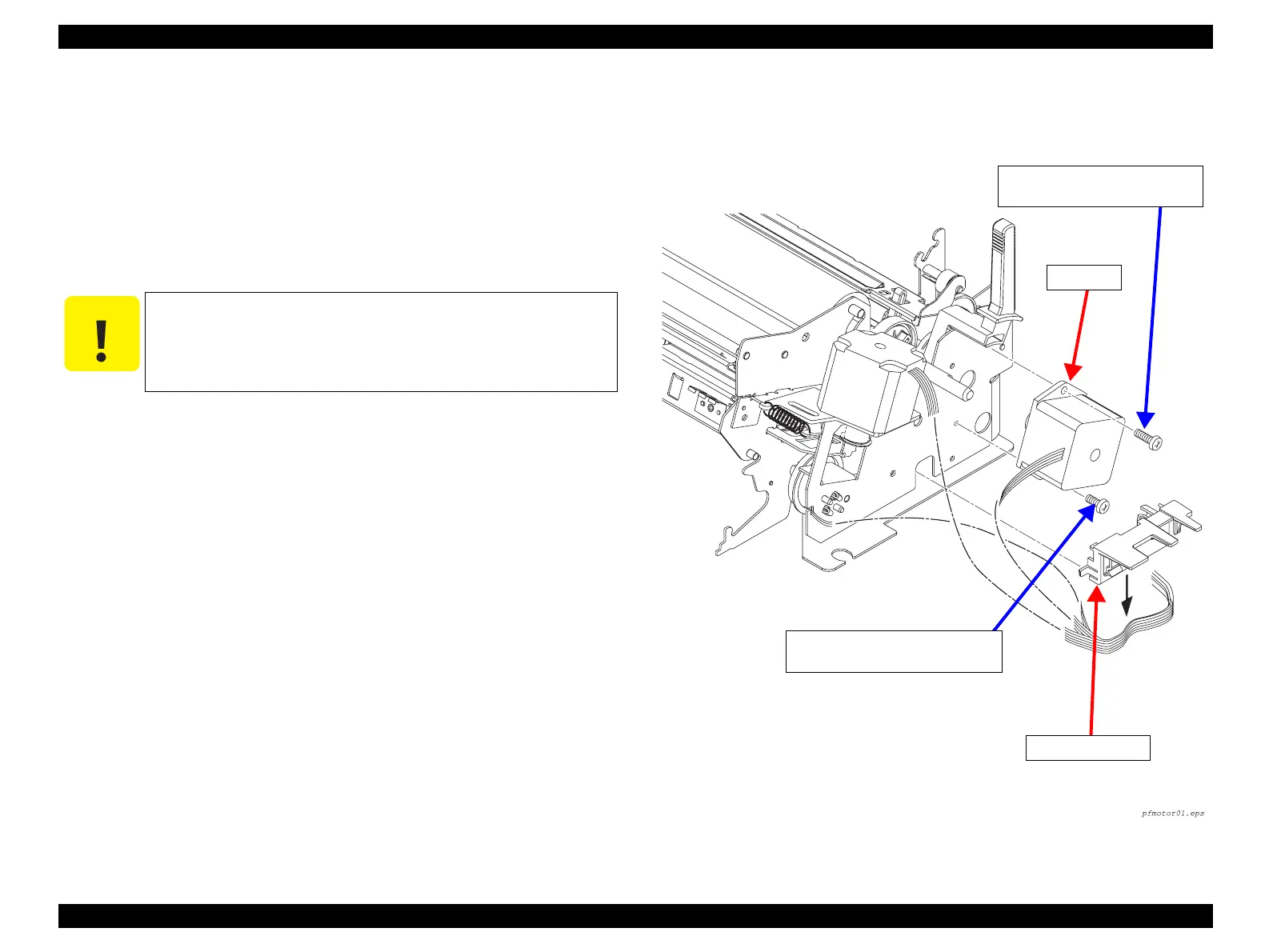

Figure 4-19. PF Motor removal
C A U T I O N
If the release lever is set to the Friction feeding position, PF Motor
is not released.
CBS Screw (3x10)
Tightening Torque: 0.9±0.1N.m
CB Screw (3x8)
Tightening Torque: 0.9±0.1N.m
PF Motor
HOLDER, CABLE
