EPSON FX-890/2190 Revision B
Disassembly and Assembly Printer Mechanism Disassembly 84
4.3.7 PF Gear Train
1. Remove the Printer Mechanism. (p.80)
2. Remove the PF Motor. (p.83)
3. Locate the release lever (Lever, Release) in the forefront position (Tractor
Position).
4. Remove the head FFC from the FRAME,SUB,RIGHT of the Printer Mechanism.
(See Figure 4-20)
5. Remove the 2 (CBS (M3x8), CB (M3x8)) screws securing the
FRAME,SUB,RIGHT, and remove the FRAME,SUB,RIGHT.

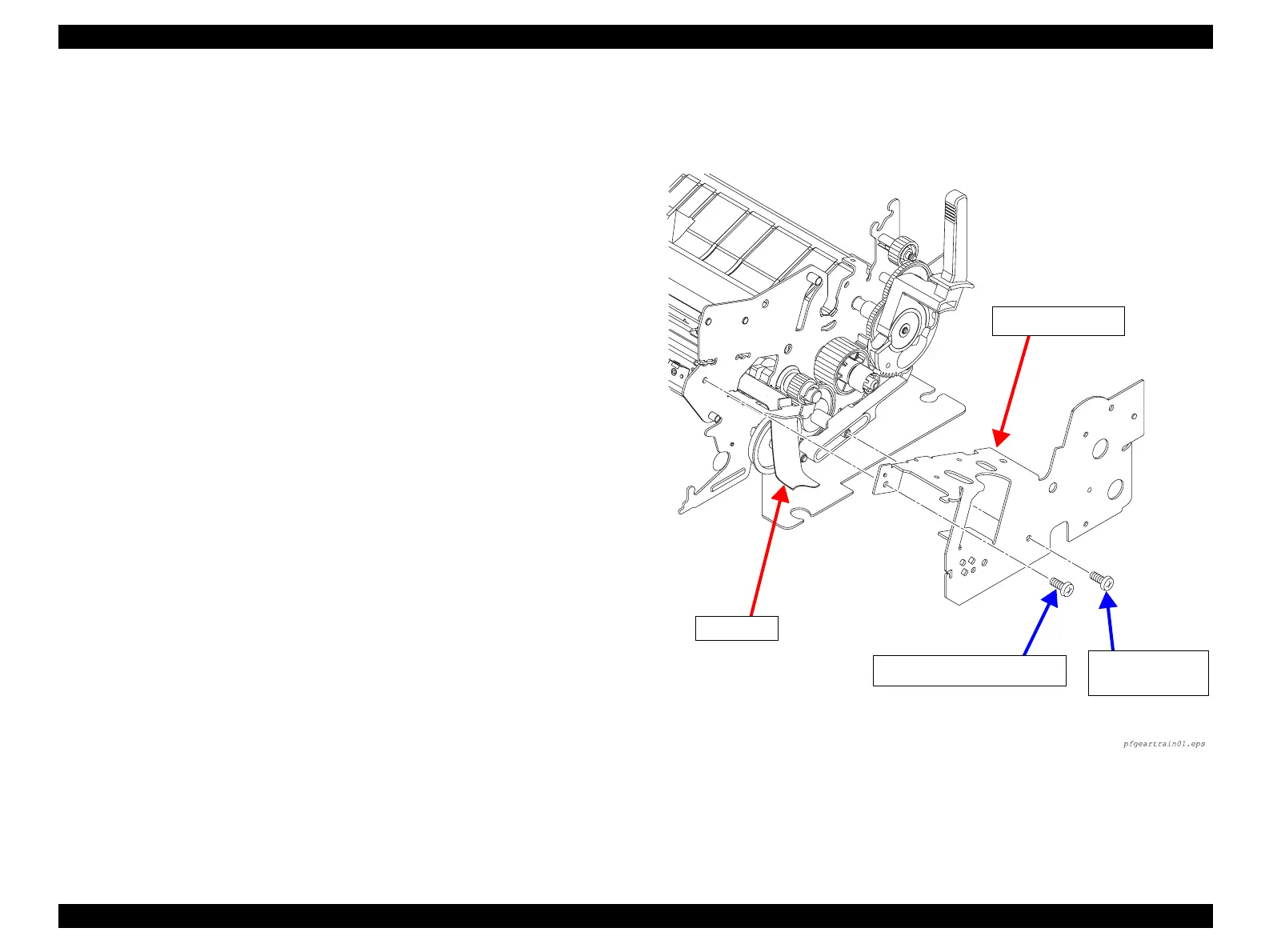

Figure 4-20. PF Gear Train Disassembly 1
Head FFC
CBS Screws (3x8)
Tightening Torque: 0.9±0.1N.m
FRAME,SUB,RIGHT
CB Screws (3x8)
Tightening Torque
: 0.9±0.1N.m
