 Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing
 Removal procedure
1. Place the Carriage stopper jig on 80-digit side on the Paper Guide Front Assy.
2. Turn the Spur Gear in the direction of the arrow, and release the Carriage
Lock. (See
Fig. 4-57.)
3. Move the Carriage Unit to the 80-digit side, and place it on the Carriage
stopper jig.

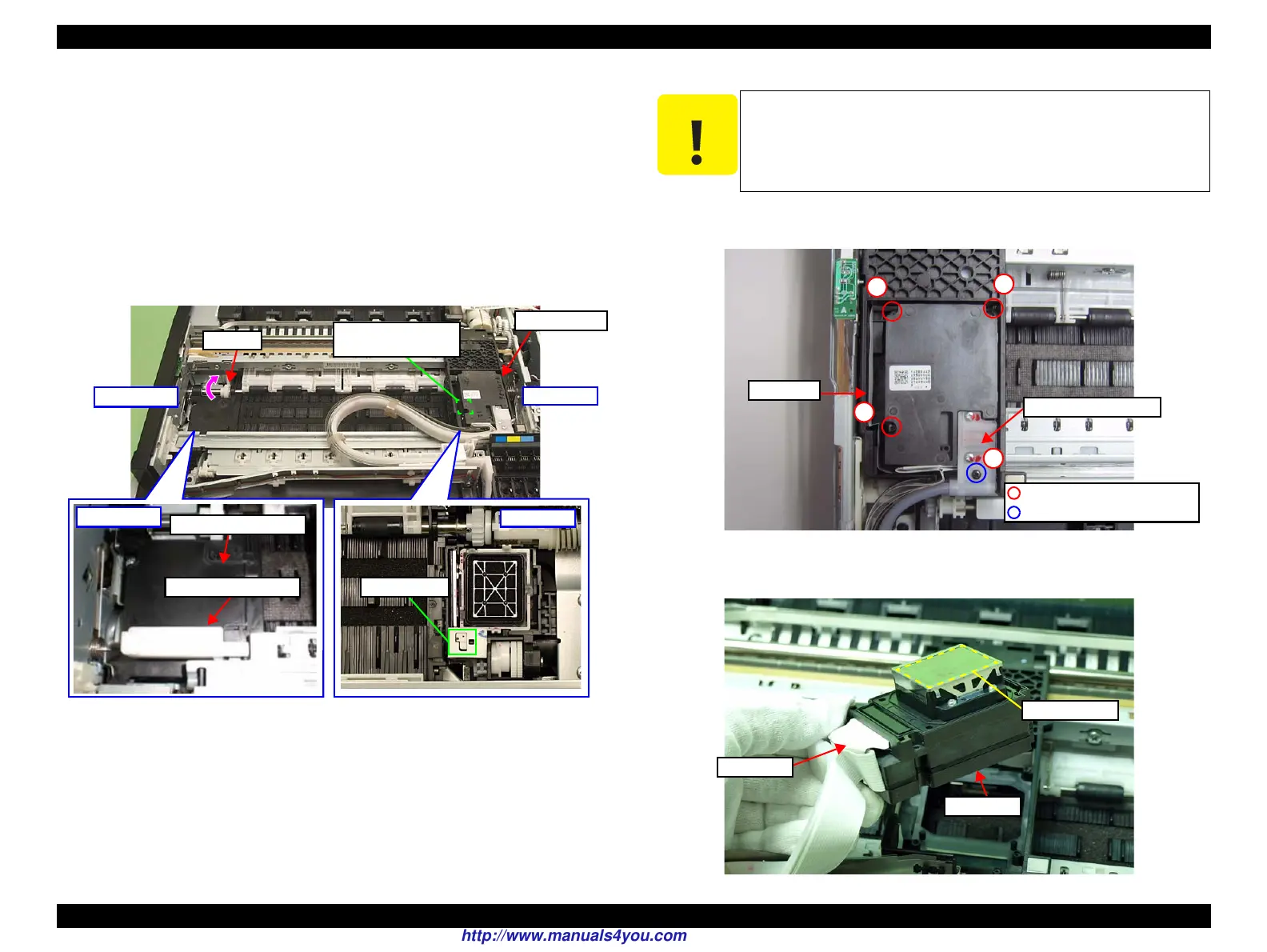

Figure 4-57.  Releasing the Carriage lock and placing the Carriage stopper jig
4. Remove the screws (x4) that secure the Printhead and the Ink Supply Tube
Assy, and detach the Printhead from the Carriage Unit.
Figure 4-58.  Removing the Printhead (1)
5. Disconnect the Head FFC (x2) from the Printhead.
Figure 4-59.  Removing the Printhead (2)
Spur Gear
Carriage Lock is under
the Carriage Unit.
Carriage Lock
0-digit side
Carriage stopper jig
Paper Guide Front Assy
80-digit side
80-digit side
0-digit side
 When handling the Printhead, make sure not to touch or
damage the nozzle plate surface of the head. (See
Fig. 4-59.)
 Do not damage or contaminate the CR Seal, or touch it with
bare hands either. (See
Fig. 4-62.)
Printhead
Ink Supply Tube Assy
C.B.P. 2x10 (Black; 2.5Kgfcm)
1
2
3
4
C.B.P. 2x10 (2.5Kgfcm)
Printhead
Nozzle Plate
 Head FFC
