Epson DiscProducer PP-100N Administrator's Guide

30
Performing an operation from a PC
1
Log in to EPSON Total Disc Net Administrator.
See “Logging in to EPSON Total Disc Net Administrator” in the PP-100N User’s Guide for the login procedure.
2

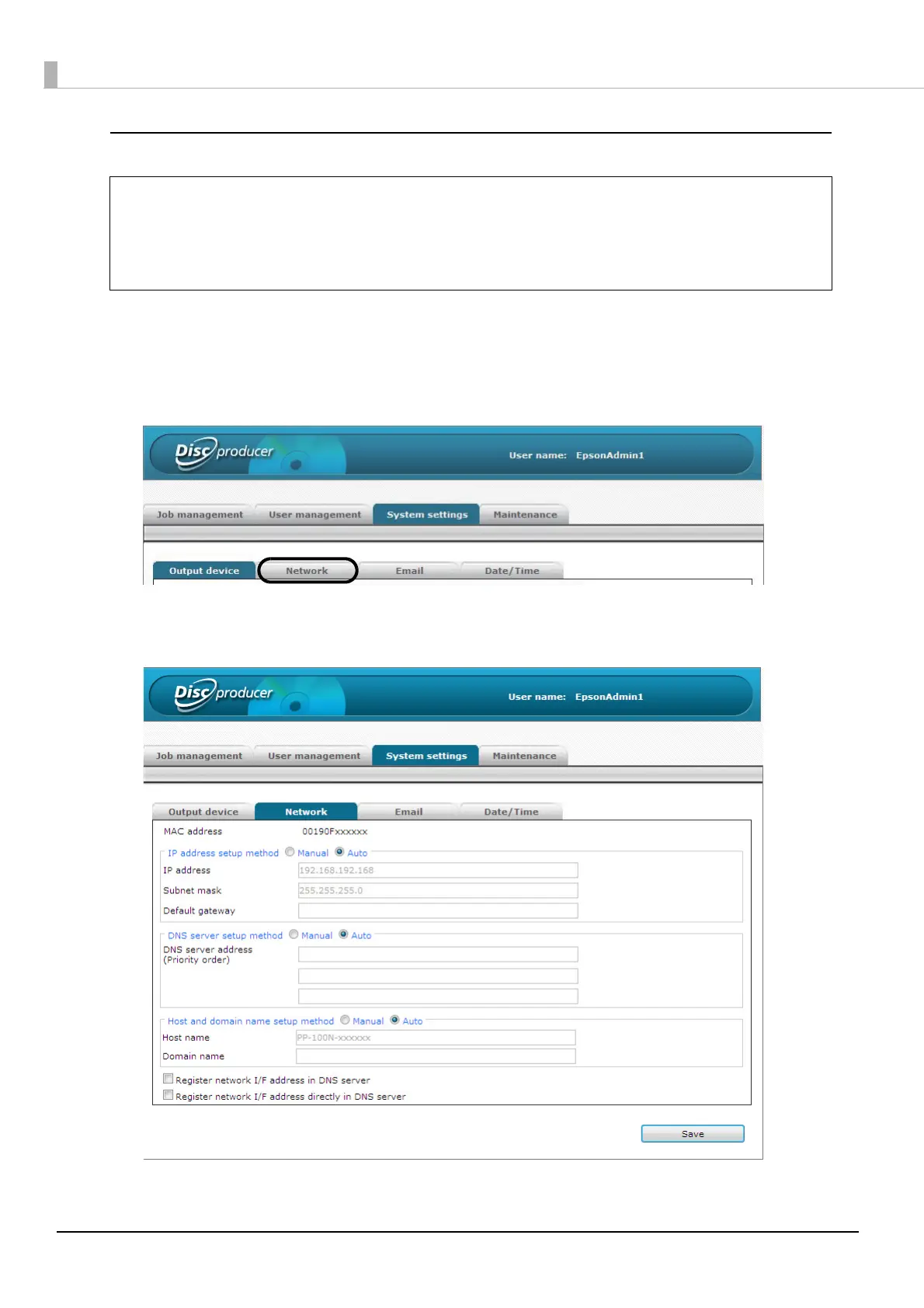

Click the [Network] tab in the [System settings] screen.
3
Either manually enter the IP address, DNS server setup method, and host and domain
name setup method, or set them to [Auto], and click [Save].
• The network settings first become able to be set using a PC when an administrator is
registered after the network settings have been set using the control panel. See page
32 in this guide for the procedure for registering an administrator.
• The link speed and Jumbo Frame cannot be set using a PC. Use this product’s control
panel (“Top menu” – “Network” – “Change settings” – “Link speed/JUMBO FRAME”).
Note
s

Epson DiscProducer PP-100N Specifications

General

Capacity	50 discs
Interface	Ethernet
Product color	Black, Grey
Printing colors	Black, Cyan, Light cyan, Light magenta, Magenta, Yellow
Country of origin	China
Quantity per pack	1 pc(s)
Media types supported	CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL
Optical disc diameter	120 mm
Publishing speed (CD)	30 discs/hour
Publishing speed (DVD)	17 discs/hour
Number of CD/DVD drives	2
Compatible operating systems	Windows 7, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2012 (64bit), Windows Vista, Windows XP
Print speed (speed mode)	60 discs/hour
Print speed (quality mode)	42 discs/hour
Print resolution (speed mode)	1440 x 1440 DPI
Print resolution (quality mode)	1440 x 720 DPI
CD write speed	40 x
DVD-R write speed	12 x
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes
Pallet width	800 mm
Pallet height	1011 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	6 pc(s)
Quantity per pallet layer	2 pc(s)

Weight and Dimensions

Package depth	725 mm
Package height	525 mm
Package weight	29200 g
Dimensions (WxDxH)	730 x 530 x 522 mm
