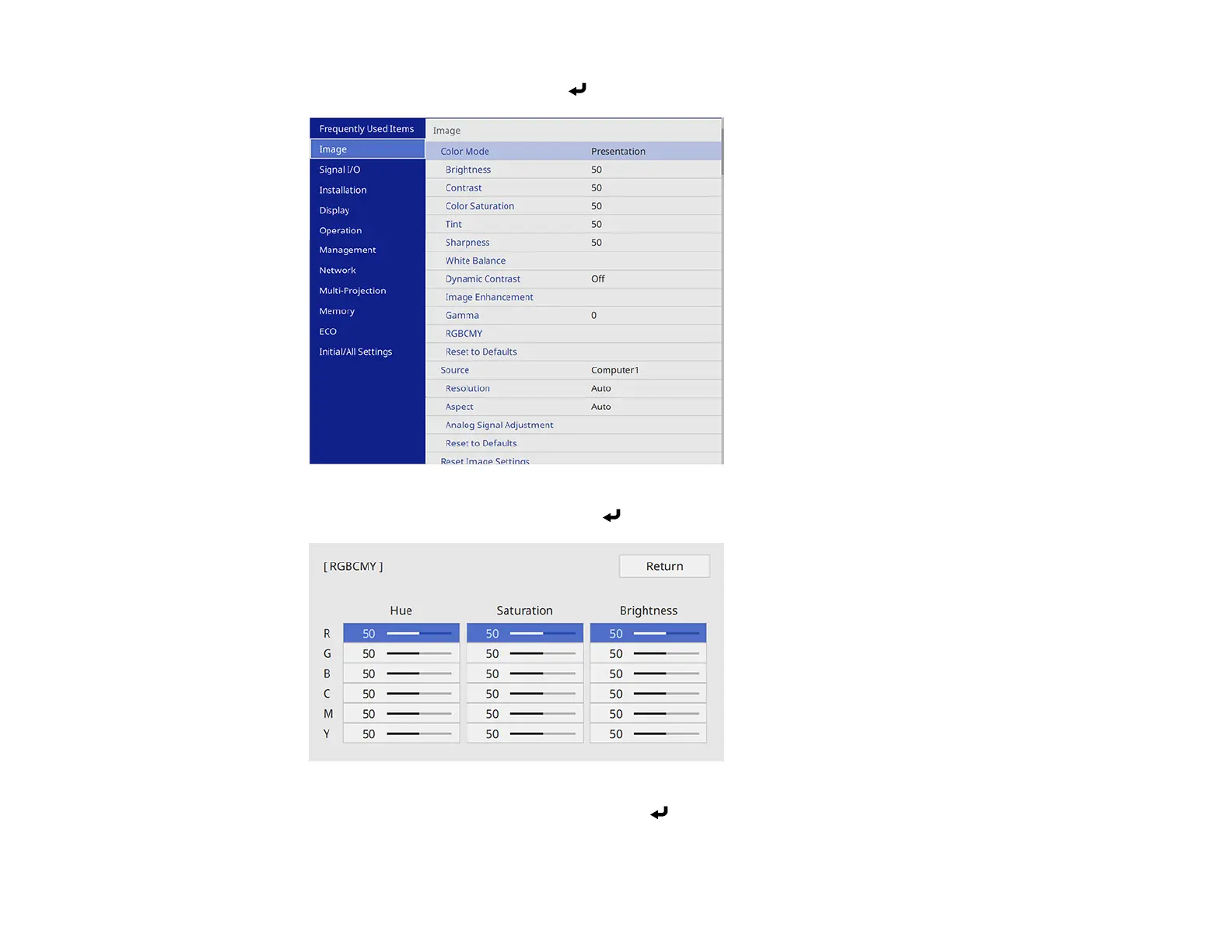

2. Select the Image menu and press Enter.

3. Select the RGBCMY setting and press Enter.

4. Select the color you want to adjust and press Enter.
