Projector Setup and Installation Options

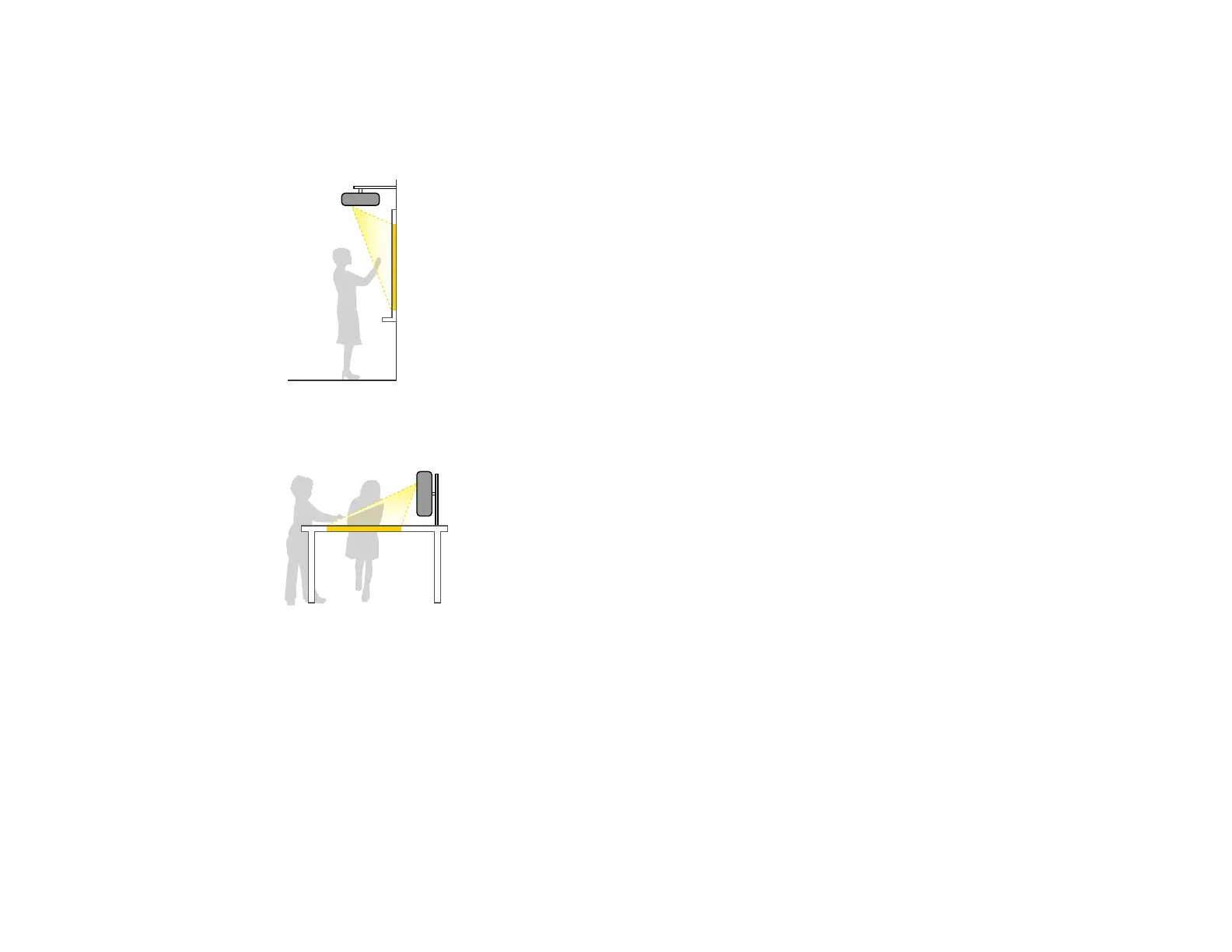

You can set up or install your projector in the following ways:

Mounted on the wall or ceiling

Mounted vertically on a table
