Full Display to adjust the image to the projector's screen size as you scale the image
7. If you selected Auto as the Scale setting, you can skip the remaining steps. If you selected Manual,
adjust each of the following options as necessary:
Select or + to scale the image horizontally and vertically at the same time
Select Scale Vertically to scale the image vertically only
Select Scale Horizontally to scale the image horizontally only

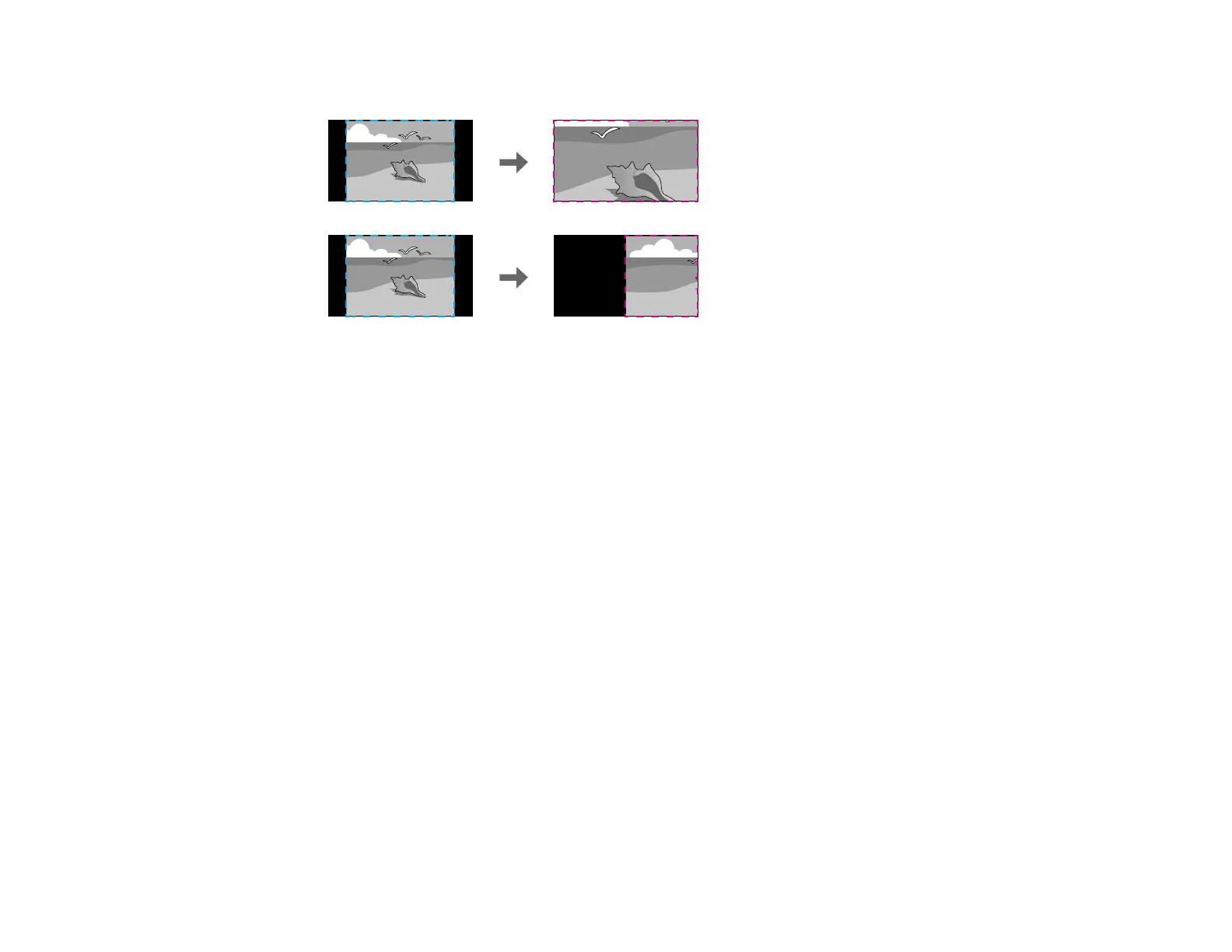

8. Select the Clip Adjustment setting and use the arrow buttons to adjust the coordinates and size of
each image as you view the screen.
9. Select the Clip Range setting to preview the area you just selected.
10. Press the Menu button to exit.
Parent topic: Using Multiple Projectors
Configuring Tiling Manually
You can project the same image from multiple projectors to create one large image (EB-770F/EB-775F).
You can configure tiling manually.
Note: Before tiling, make sure the projected images are rectangular, correctly sized, and focused.
1. Turn on the projector.
2. Press the Menu button.
