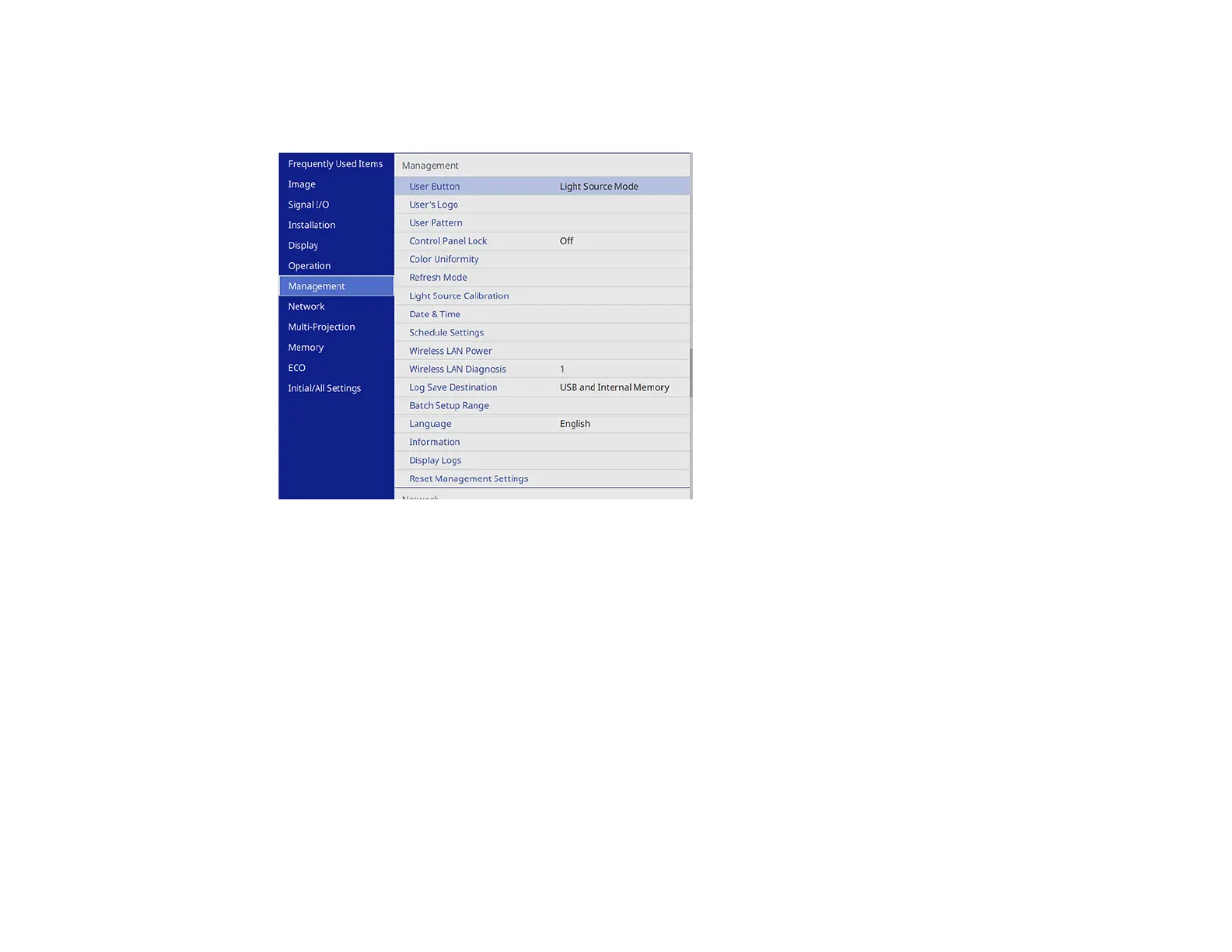

Administration Settings - Management Menu

Settings on the Management menu let you customize various projector administrative features.

Note: You must disable Schedule password protection to adjust the Schedule Settings settings.
