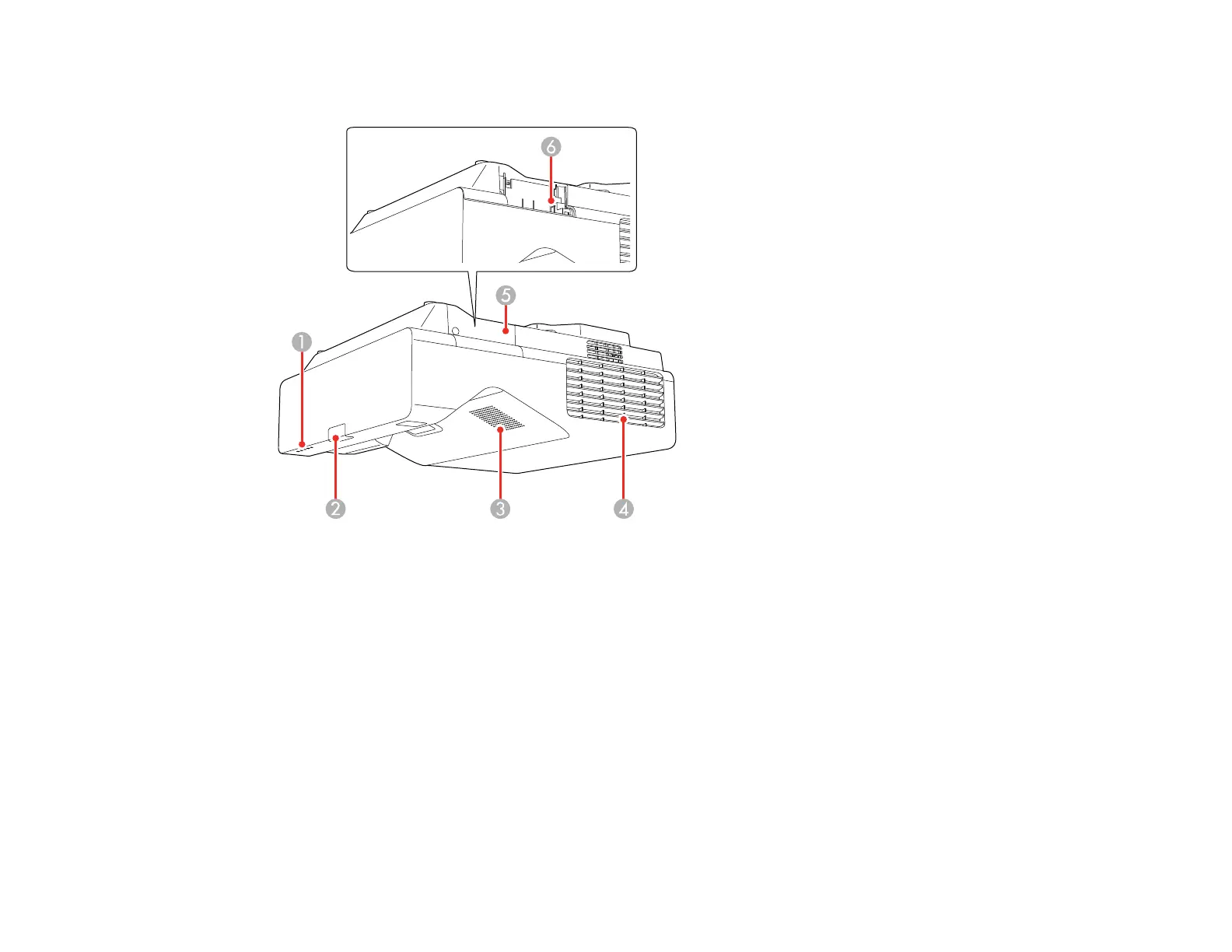

Projector Parts - Front/Side

1 Status lights

2 Remote control receiver

3 Speaker

4 Exhaust vent

5 Optional wireless LAN module cover

6 Optional wireless LAN module slot

Parent topic: Projector Part Locations
