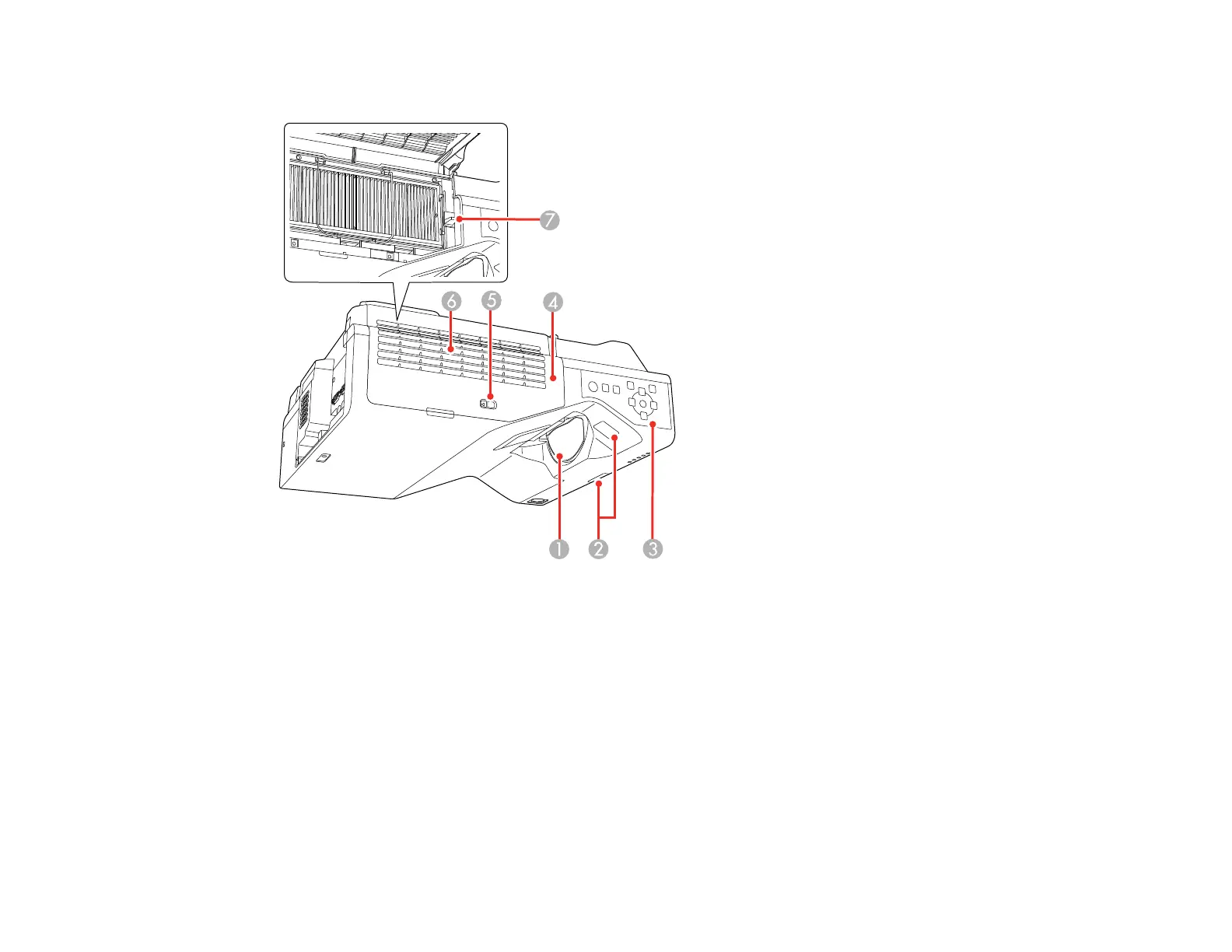

Projector Parts - Top/Side

1 Lens

2 Remote receiver

3 Control panel

4 Air filter cover

5 Air filter cover latch

6 Air intake vent (air filter)

7 Focus lever

Parent topic: Projector Part Locations
