Epson EMP-X3 - Connecting Visual Equipment

ii
English
Audio adapter
(Commercially available)
To audio
output port
To audio
output
port
Component
out
Video
out
S-Video
out
S-Video cable
(Commercially
available)
A/V cable
(Commercially available)
Audio cable
(Commercially
available)
Using EMP-82/62
To audio
output port
RCA audio cable
(Commercially available)
To audio
output
port
Computer cable
(Accessory /
Optional)
Audio cable
(Commercially
available)
Audio cable
(Commercially
available)
You can choose to connect
your computer to either port
Computer 1 or Computer 2.
Component video
cable (Optional)
Component video
cable (Optional)
Computer cable
(Accessory /
Optional)
To audio
output port
To audio
output
port
Component
out
Video
out
S-Video
out
S-Video cable
(Commercially
available)
A/V cable
(Commercially available)
Audio cable
(Commercially
available)
Audio cable
(Commercially
available)
Using EMP-X3

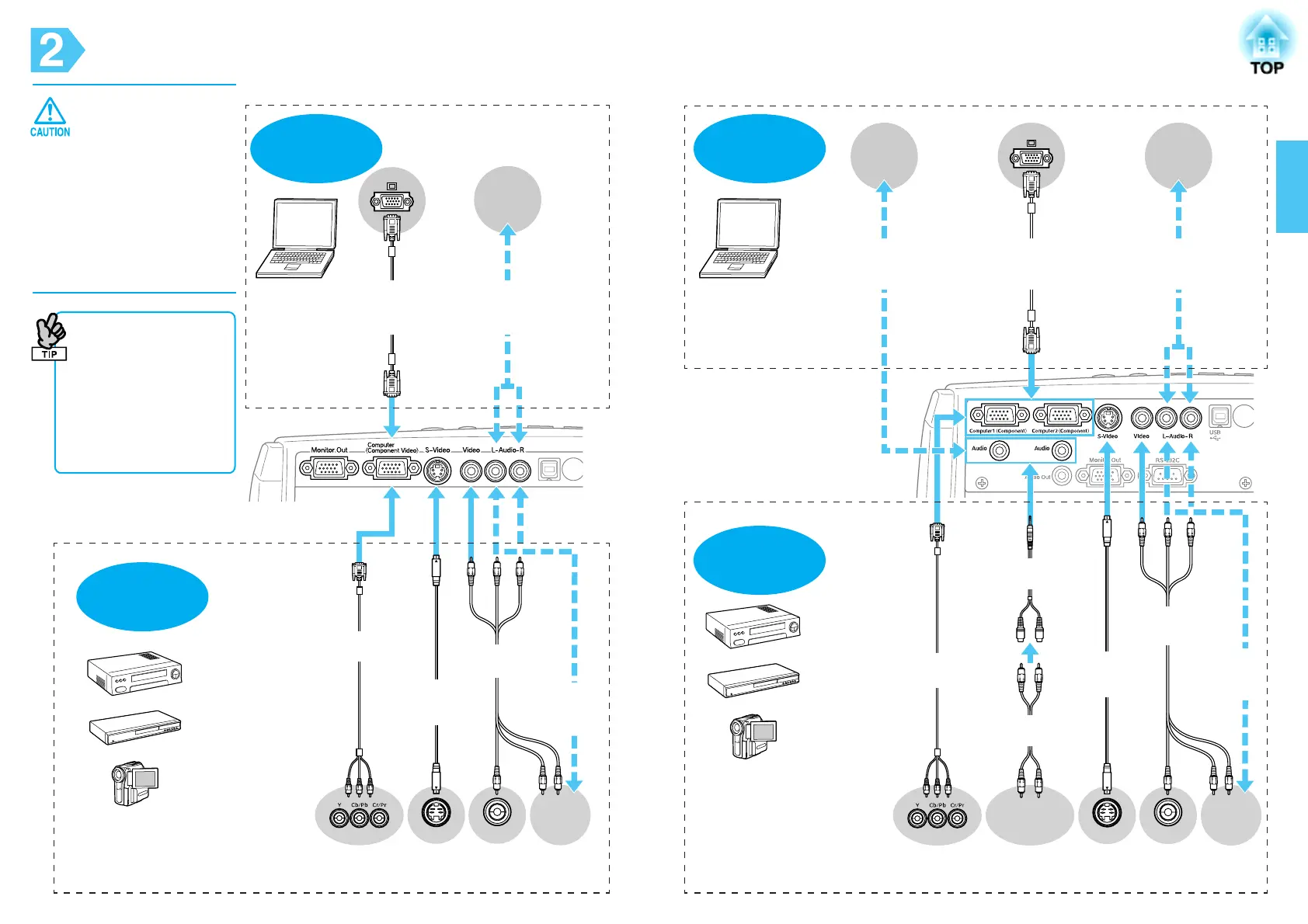

Connecting to Visual Equipment
• Turn off connected
equipment. Damage
may result if you try
to connect when the
power is on.
• Do not try to force a
cable connector to
fit a port with a
different shape. This
may damage your
projector.
• When the source has an
unusual connection, use
the cable provided with
the source or
commercially available
cables.
• If you use a 2RCA (L/R)
stereo min-jack audio
cable, make sure it is
labelled "No resistance".
Connecting to
a Computer
Connecting to a
Video Source
DVD players, VHS players,
satellite tuners, RGB
converters, video distribution
machines, and so on.
* The port names may vary depending on the equipment.
Connecting to
a Computer
Connecting to a
Video Source
DVD players, VHS
players, satellite
tuners, RGB
converters, video
distribution machines,
and so on.
* The port names may vary depending on the equipment.
