Epson EMP-X3 User Manual

71
List of ESC/VP21 Commands
USB Connection Setup
In order to control the projector using ESC/VP21 commands via a USB
connection, the following preparations must be carried out.
PROCEDURE
A
Download the USB driver (USB-COM Driver) from the
EPSON website to your computer.
The URL is as follows.
http://esupport.epson-europe.com/downloads/en/
B
Install the downloaded USB driver onto your
computer.
Read the instructions displayed on the download screen.
C
<Using EMP-X3>
Set "Link21L" to "On" in the "Extended" menu.
<Using EMP-82/62>
Select "USB" for "COM port" in the "Extended" menu.
D
Turn the projector's power off.
E
Turn off this projector after the confirmation buzzer
beeps twice.
Once the projector's power has turned back on, communication
via a USB Connection will then be possible.

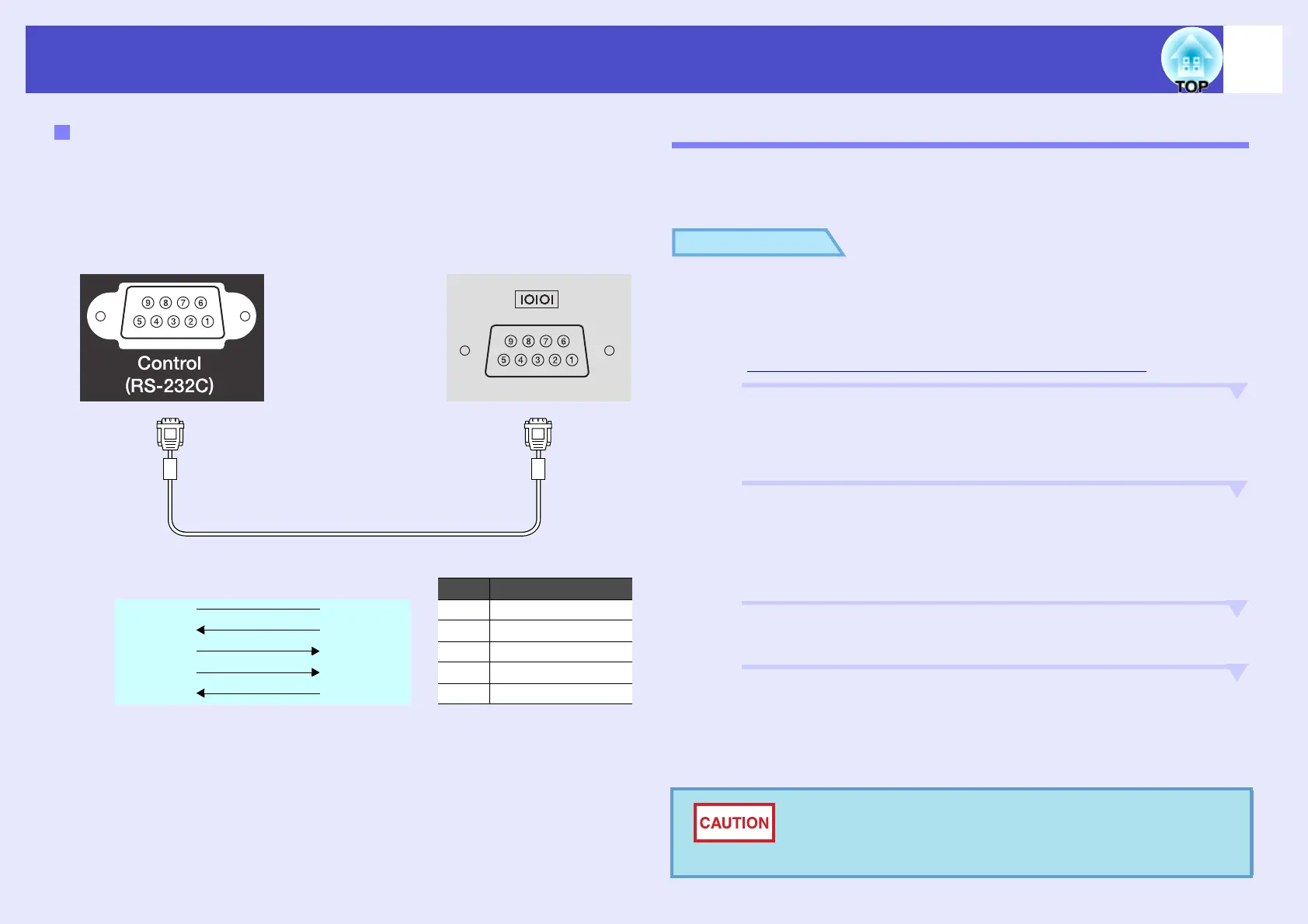

Serial connection (EMP-82/62 only)
• Connector shape : D-Sub 9 pin (male)
• Projector input connector : Control (RS-232C)
<At computer>
<At projector> (PC serial cable) <At computer>
Signal Function
GND 5 5 GND
GND Signal wire ground
RD 2 3 TD
TD Transmit data
TD 3 2 RD
RD Receive data
DTR 4 6 DSR
DSR Data set ready
DSR 6 4 DTR
DTR Data terminal ready
<At projector>
If you disconnect the power cable before the
confirmation buzzer beeps twice, the communication
port is not changed.

Epson EMP-X3 Specifications

General

Display resolution	1024 x 768 pixels
Number of colors	16.78 million colors
Vertical scan range	50 - 85 Hz
Horizontal scan range	15 - 92 kHz
Contrast ratio (typical)	400:1
Projector native resolution	XGA (1024x768)
Video in	Mini D-sub 15pin x 1
I/O ports	USB B x1, RCA x 1, Mini DIN, Mini D-sub 15pin
Audio input	RCA x 2
Aspect ratio	4:3
Dimensions (WxDxH)	327 x 246 x 86 mm
Power requirements	100 - 240V ±10%, 50 / 60Hz AC
Lamp type	UHE
Lamp power	170 W
Light source type	Lamp
Service life of light source	2000 h
Noise level	30 dB
Power consumption (typical)	240 W
Operating temperature (T-T)	5 - 35 °C
Market positioning	Home cinema

Weight and Dimensions

Weight	2600 g
