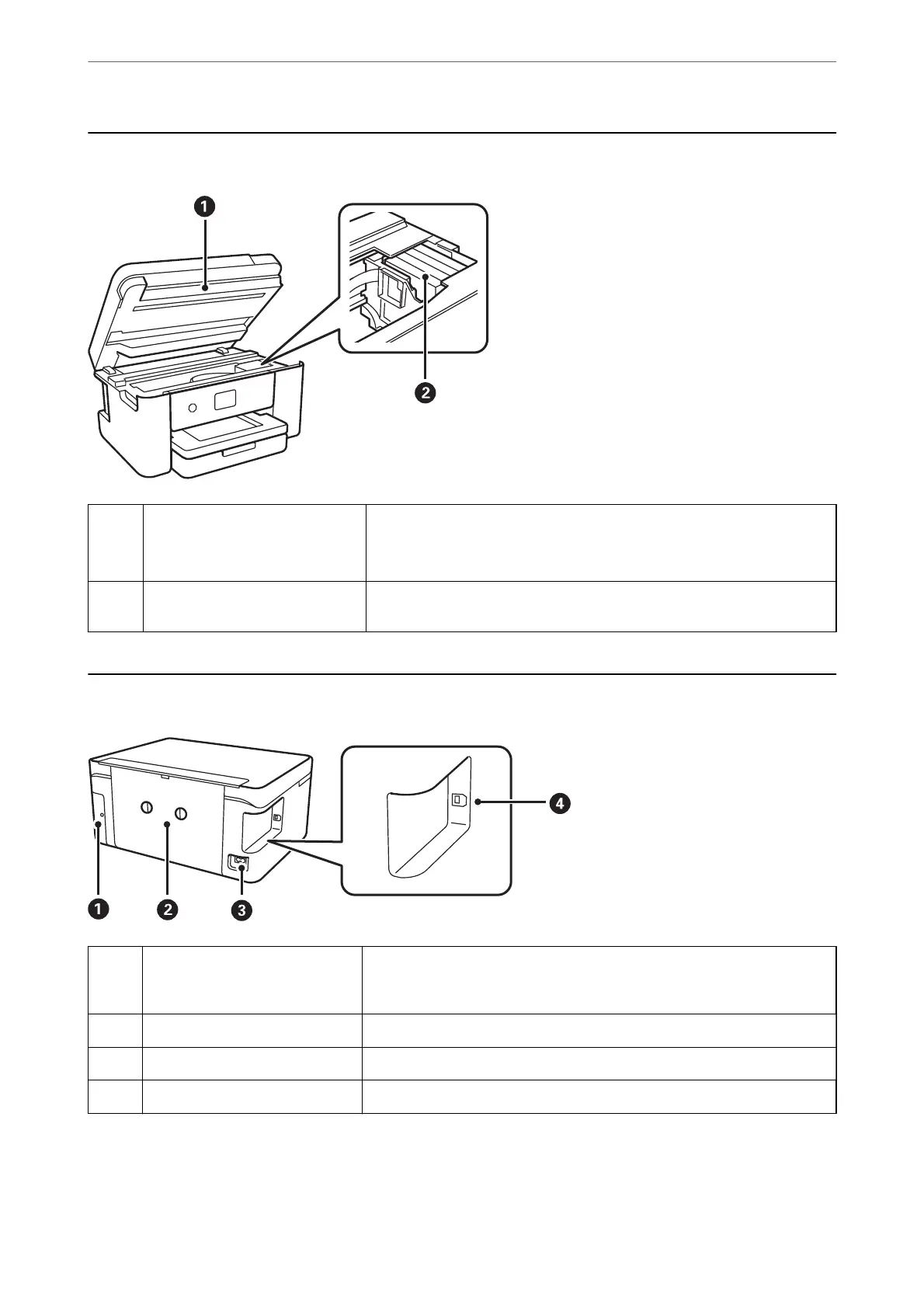

Inside
A
Scanner unit Scans placed originals. Open when replacing ink cartridges or removing
jammed paper inside the printer.
This unit should usually be kept closed.
B
Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles
underneath.
Rear
A
Maintenance box cover Remove when replacing the maintenance box. The maintenance box is a
container that collects a very small amount of surplus ink during cleaning or
printing.
B
Rear cover Remove when removing jammed paper.
C
AC inlet Connects the power cord.
D
USB port Connects a USB cable to connect with a computer.
Part Names and Functions
>
Rear
17
