Epson Expression Premium XP-7100 Series - Control Panel; Icons Displayed in the LCD Screen

A
AC inlet Connects the power cord.
B
Rear cover Remove when removing jammed paper.
C
Vent Releases heat from the inside of the printer. Vents are on the bottom right,
bottom left, and on the right-hand side. Do not cover the vents when
placing the printer.
D
USB port Connects a USB cable to connect with a computer.
E
LAN port Connects a LAN cable.

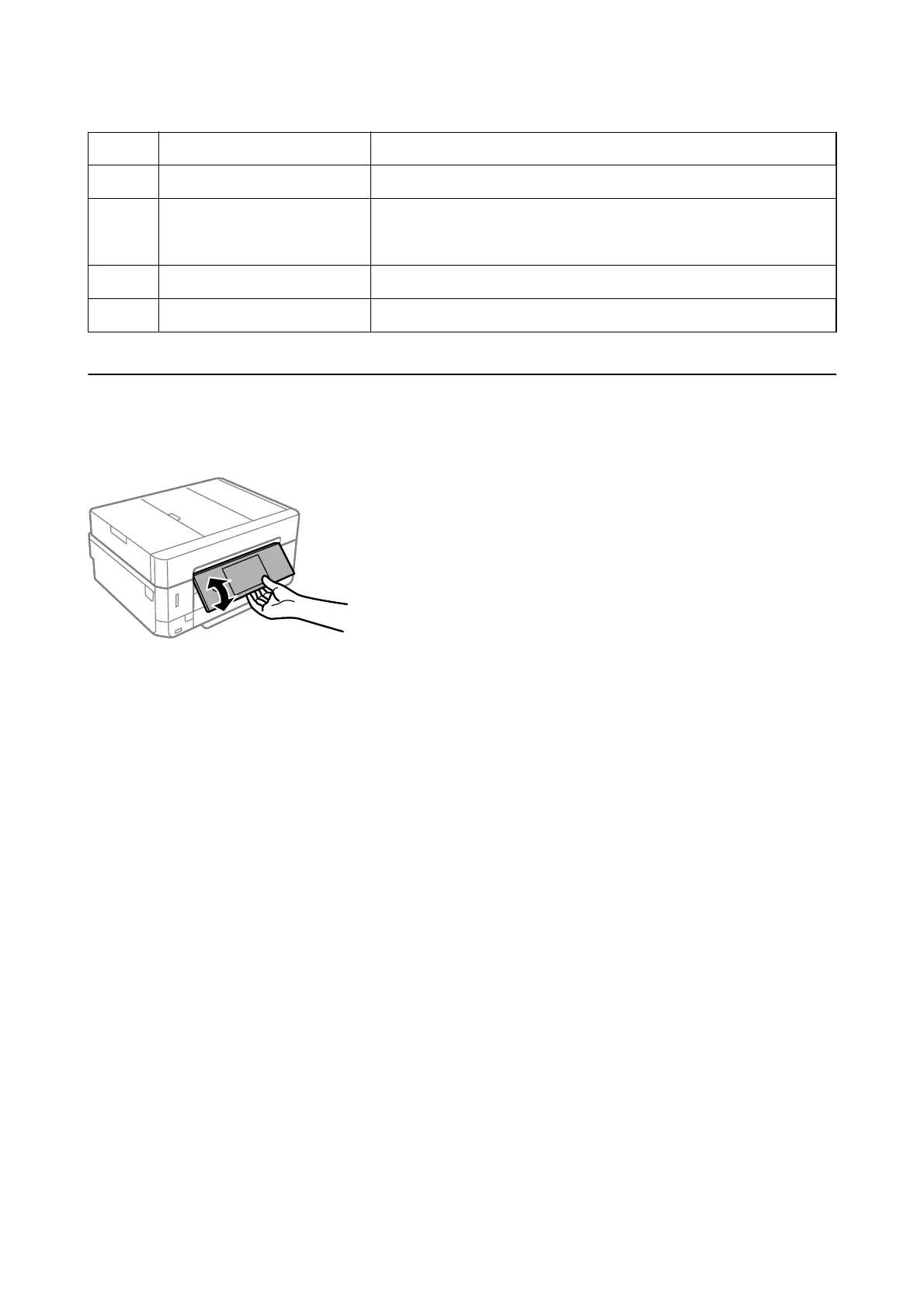

Control Panel
You can change the angle of the control panel.
Note:
❏ When turning on the printer, the control panel rises automatically. When turning on the next time, the panel rises to the
same angle as the last time you turned the power o.
❏ If you start printing with the control panel closed, it rises automatically and the output tray is ejected.
Icons displayed in the LCD Screen
e following icons are displayed on the LCD screen depending on the printer's status.
