Epson L6170 series - Placing Originals on the Scanner Glass

c
Important:

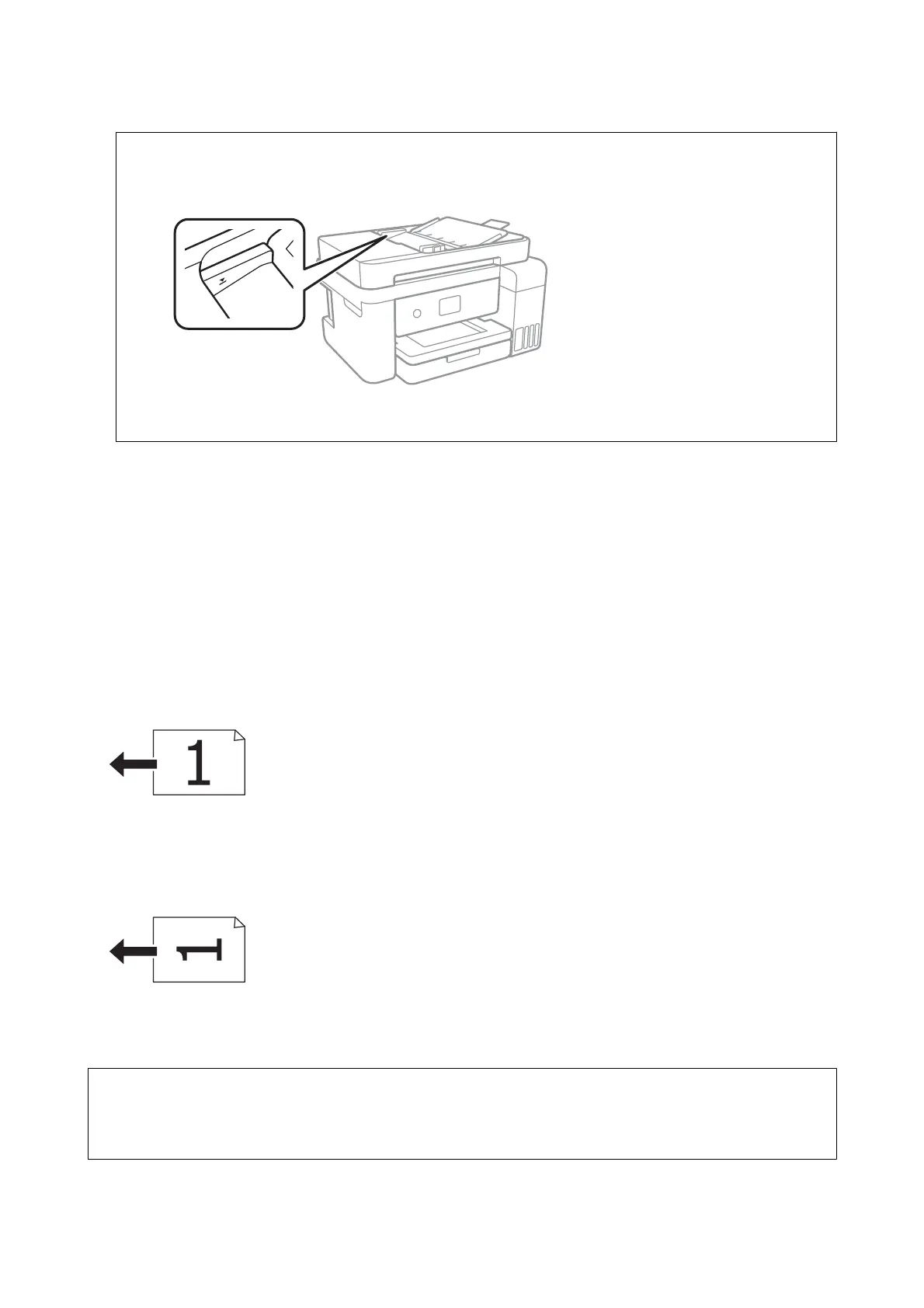

❏ Do not load originals above the line indicated by the triangle symbol on the ADF.
❏ Do not add originals while scanning.
Related Information
& “Available Originals for the ADF” on page 50
Placing Originals on the ADF for 2-up Copying
Place the originals in the direction shown in the illustration, and then select the orientation setting.
❏ Placing the originals in the up direction: Select Landscape on the control panel as described below.
Copy > Advanced Settings > Original Orientation > Landscape
Place the originals on the ADF in the direction of the arrow.
❏ Placing the originals in the le direction: Select Portrait on the control panel as described below.
Copy > Advanced Settings > Original Orientation > Portrait
Place the originals on the ADF in the direction of the arrow.
Placing Originals on the Scanner Glass
!
Caution:
Be careful not to trap your hand or
ngers
when opening or closing the document cover. Otherwise you may be
injured.
User's Guide
Preparing the Printer
52
