Epson LX-810 Technical Manual

REV.-A
Reassembly
1. Insertion of the paper guide roller onto the sprocket shaft should be in the direction indicated in
Figure 3-17.
2. When inserting the sprocket roller into the sprocket shaft, the marked sides of both wheels should
face to the left, and the markings should be analogously positioned.
Shaft
er portion
side.)
Marks to ‘be Matched

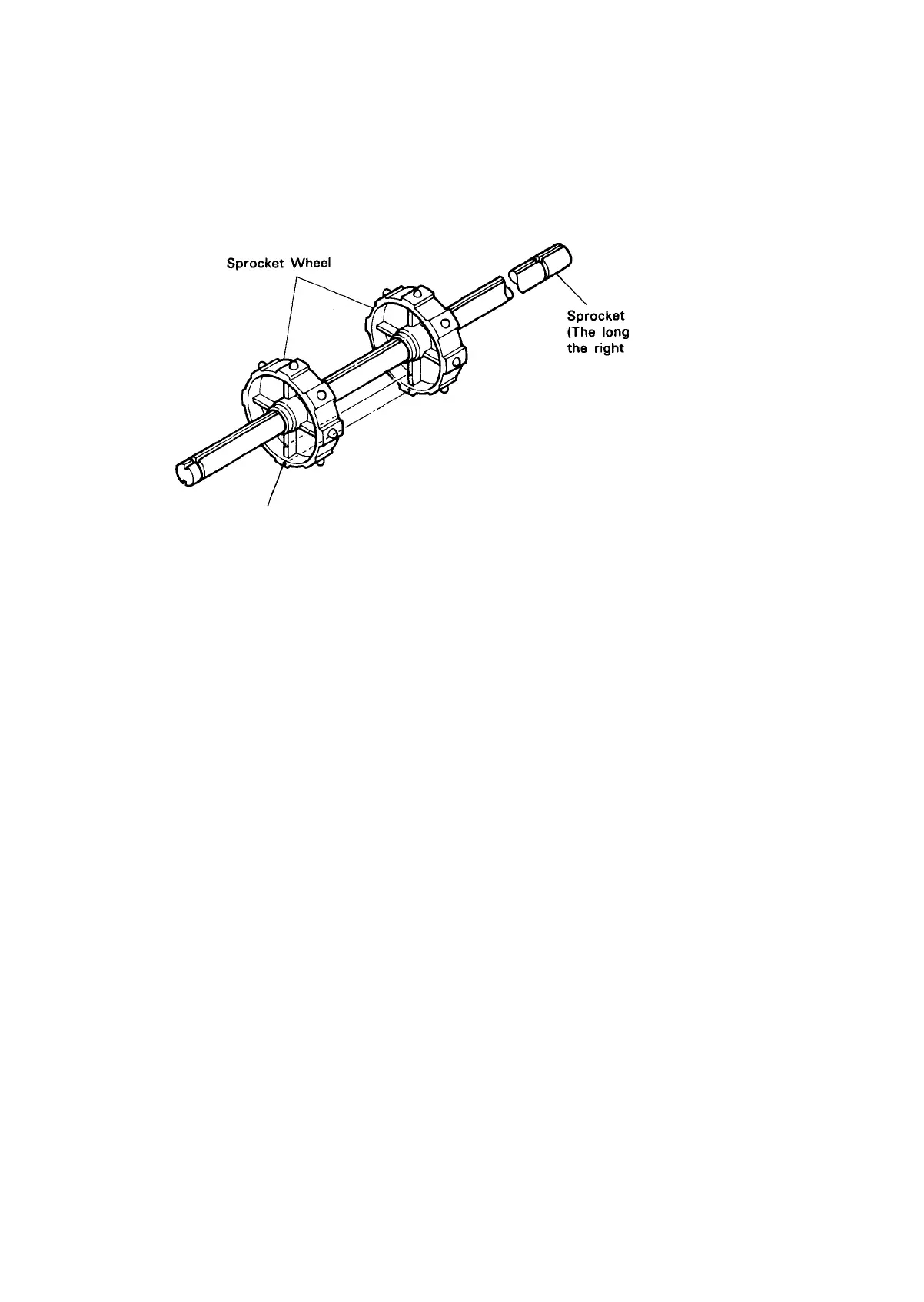

Figure 3-17. Direction for Insertion of Sprocket Wheels
goes on
3-19

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
