Epson LX-810 Technical Manual

REV.-A
To ensure optimal performance of the printer, be sure, following reassembly and adjustment, to
.,
@
lubricate, apply adhesive, clean, and maintain, according to the procedures described in Chapter 6.
In referring to small parts, this manual utilizes the abbreviations listed in Table 4-3.
Table 4-3. Abbreviations for Small Parts
Abbreviation
Part Name
CBB
Cross-recessed Bind B-tight screw head
CB(0)
Cross-recessed head, Bind screw with Outside toothed lock
washer

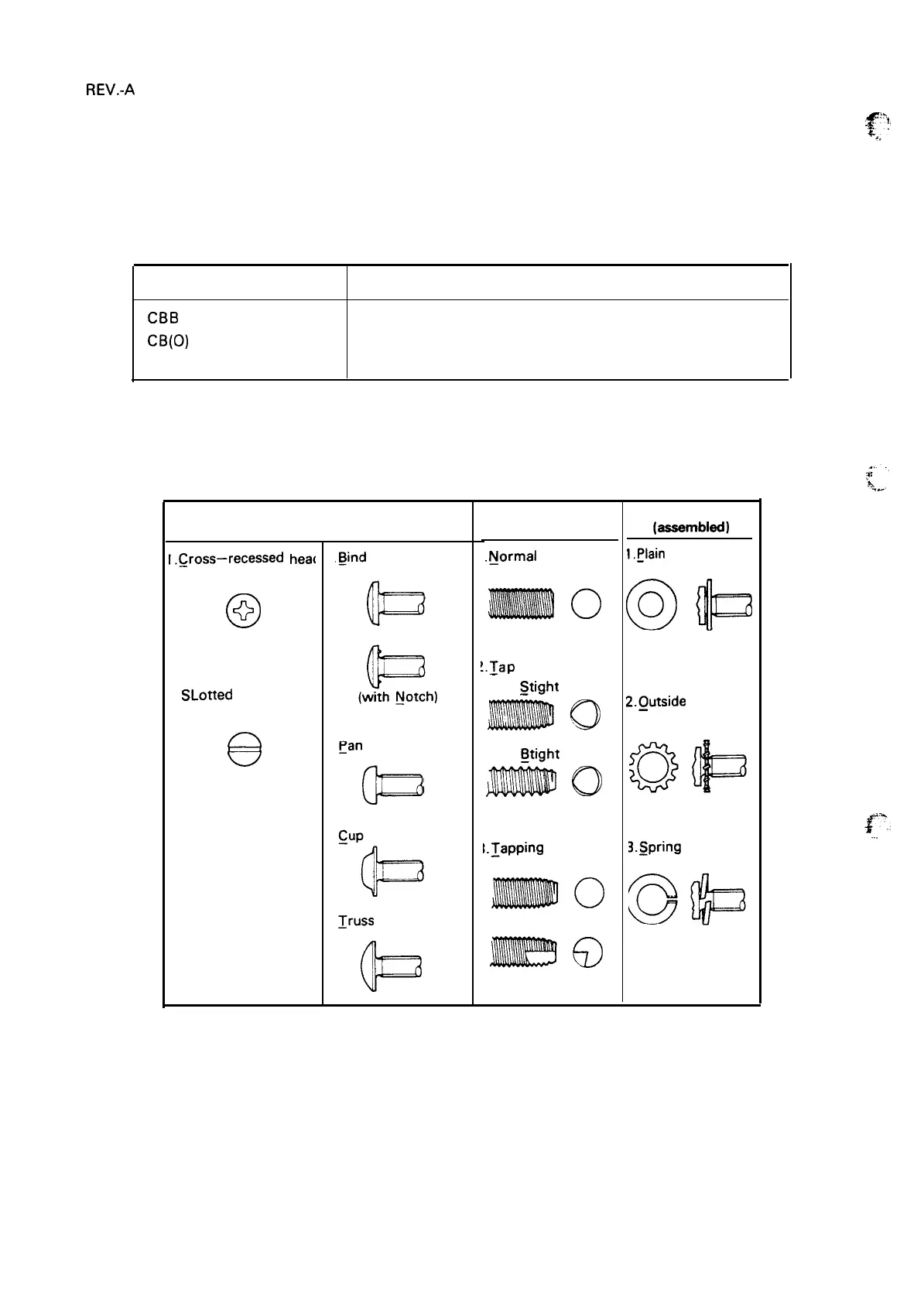

Table 4-4 correlates the screw forms with the abbreviated ‘part names.
Table 4-4. Form and Abbreviated Part Name of Screw
Head
1.~ross–recessed heat
@
2. SLotted head
—
e
~russ
b
Body
,~ormal
!.~ap tight
~tight
~tight
mo
l.~apping
mo
JiMwf!3a
Washer
(essamblad)
1.~lain washer
2.~utside toothed
lock washer
s.~pring washer
... ”-’
4-2

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
