REV.-A

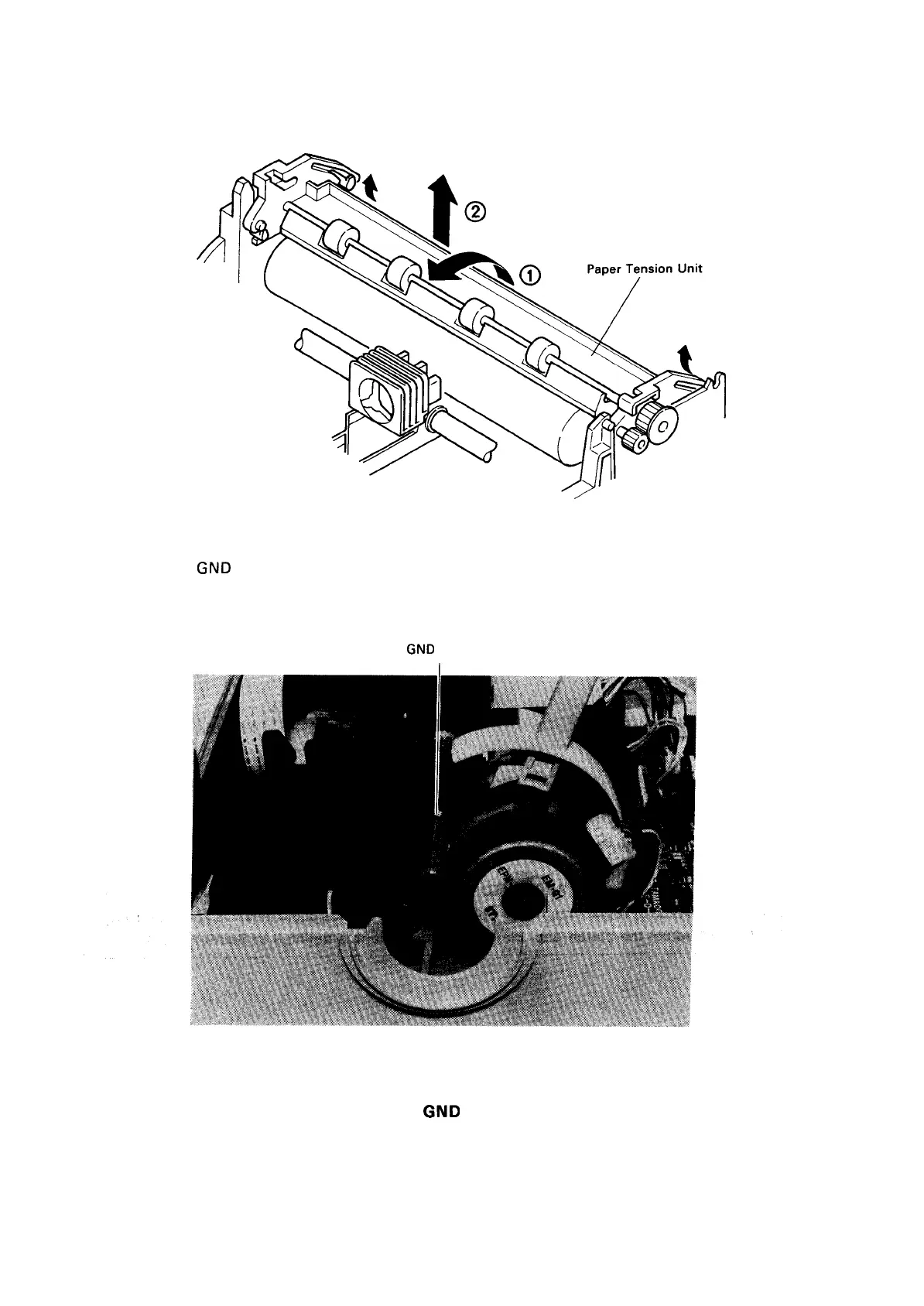

3. Remove the paper tension unit.
Figure 4-13. Paper Tension Unit Removal
4.
Remove the GND spring.
GND
spring
Figure 4-14. GND Spring Removal
4-11
