Epson LX-810 Technical Manual

REV.-A
1. Remove side covers L and R.
Side cover (L) .,.
Side cover (R)
+

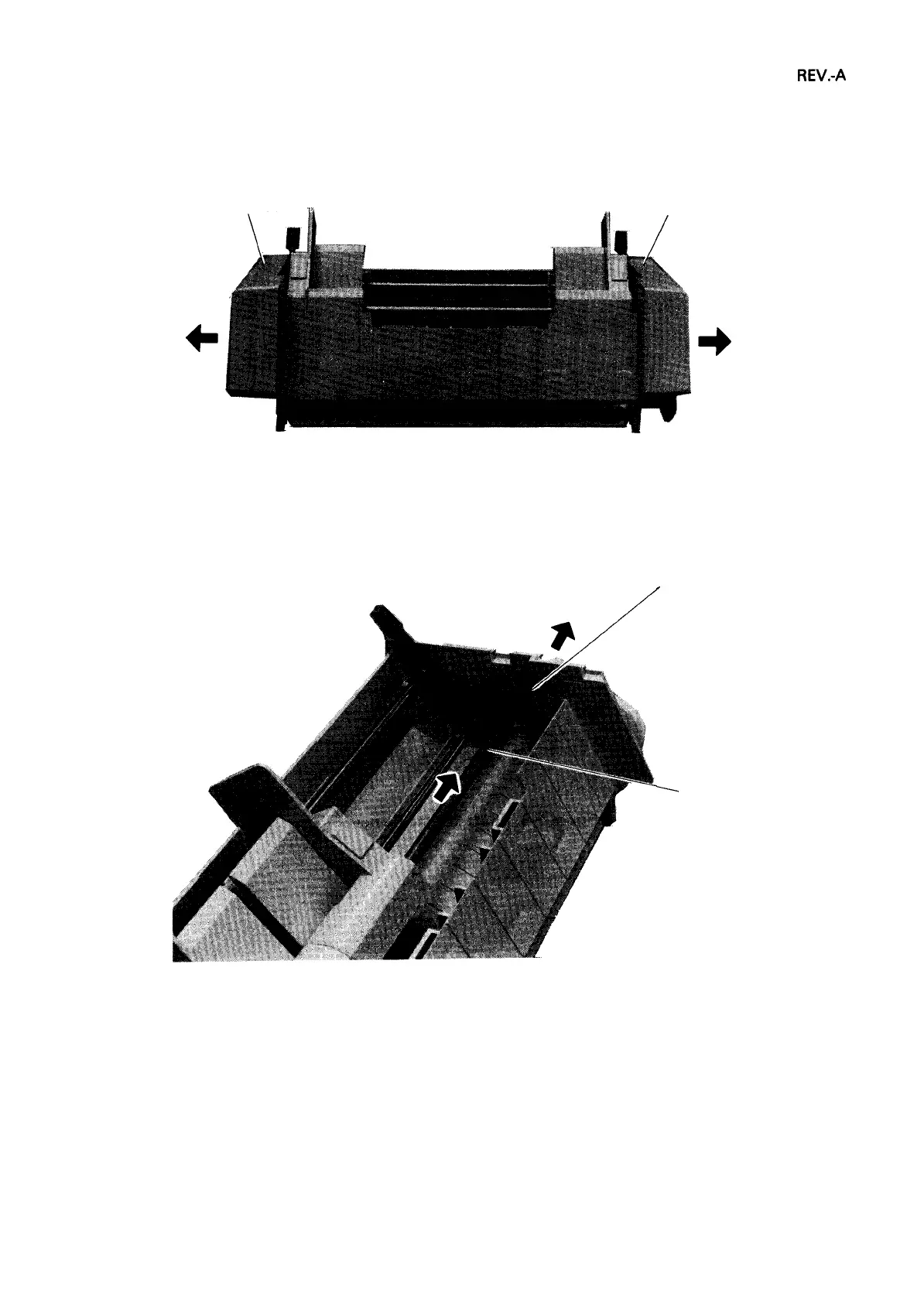

Figure 3-5. Side Cover Removal
2. Remove the E-ring (6) on the paper loading roller shaft, and then remove the shaft.
E-ring (6)
,
\
Paper Loading Shaft
Figure 3-6. Paper Loading Roller Shaft Removal
3-11

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
