Epson LX-810 Technical Manual

REV.-A
3. Remove the 2 E-rings (6) on the paper support shaft.
$!:?.,
. . . . . .
.
E-ring (6)
E-ring (6)

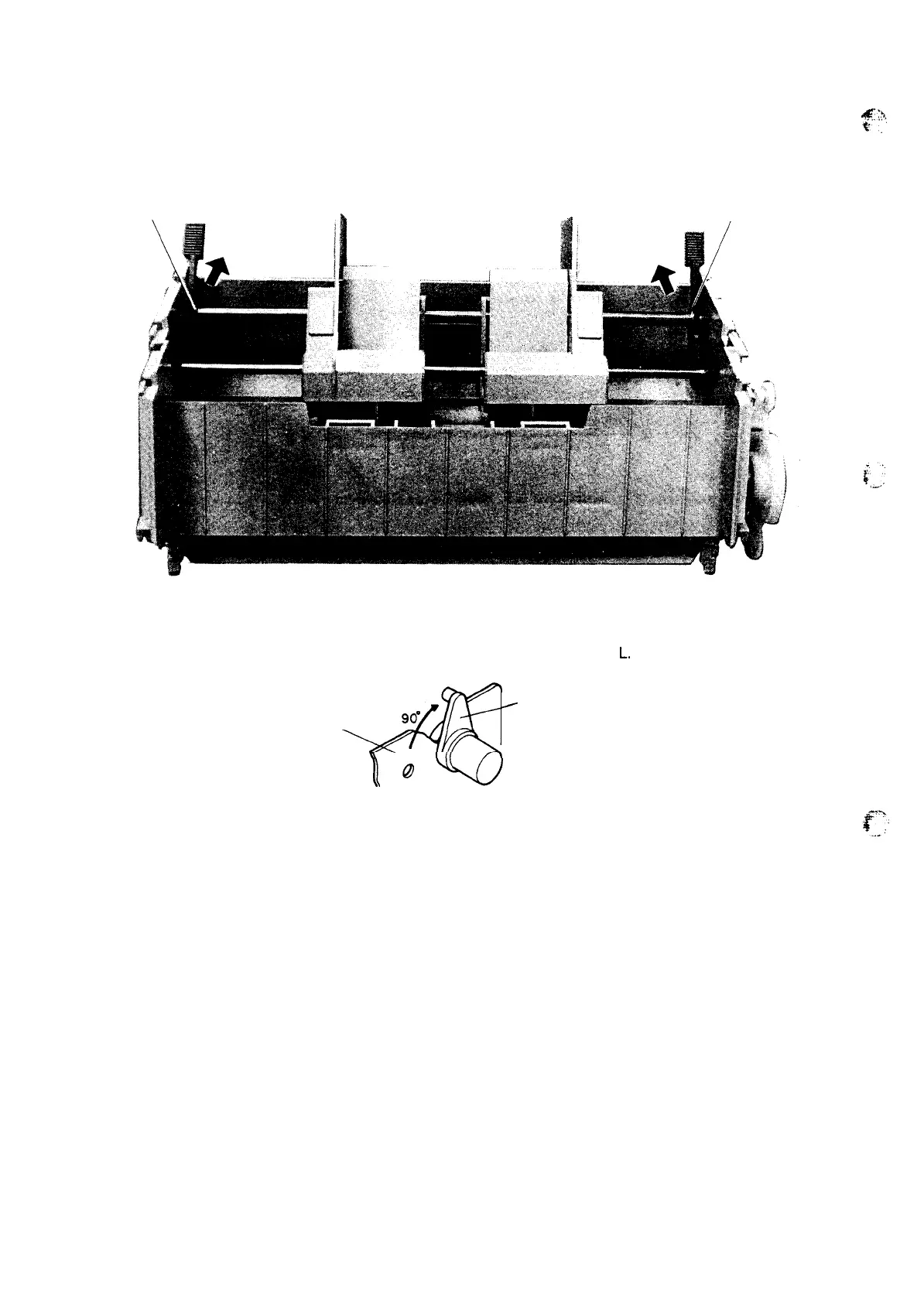

Figure 3-7. E-Ring Removal
4.
Remove the shaft holder fastening the paper support shaft to frame L.
= Shaft Holder
Frame
Figure 3-8. Shaft Holder Removal
3-12

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
