Epson LX-810 User Manual

Interface Boards

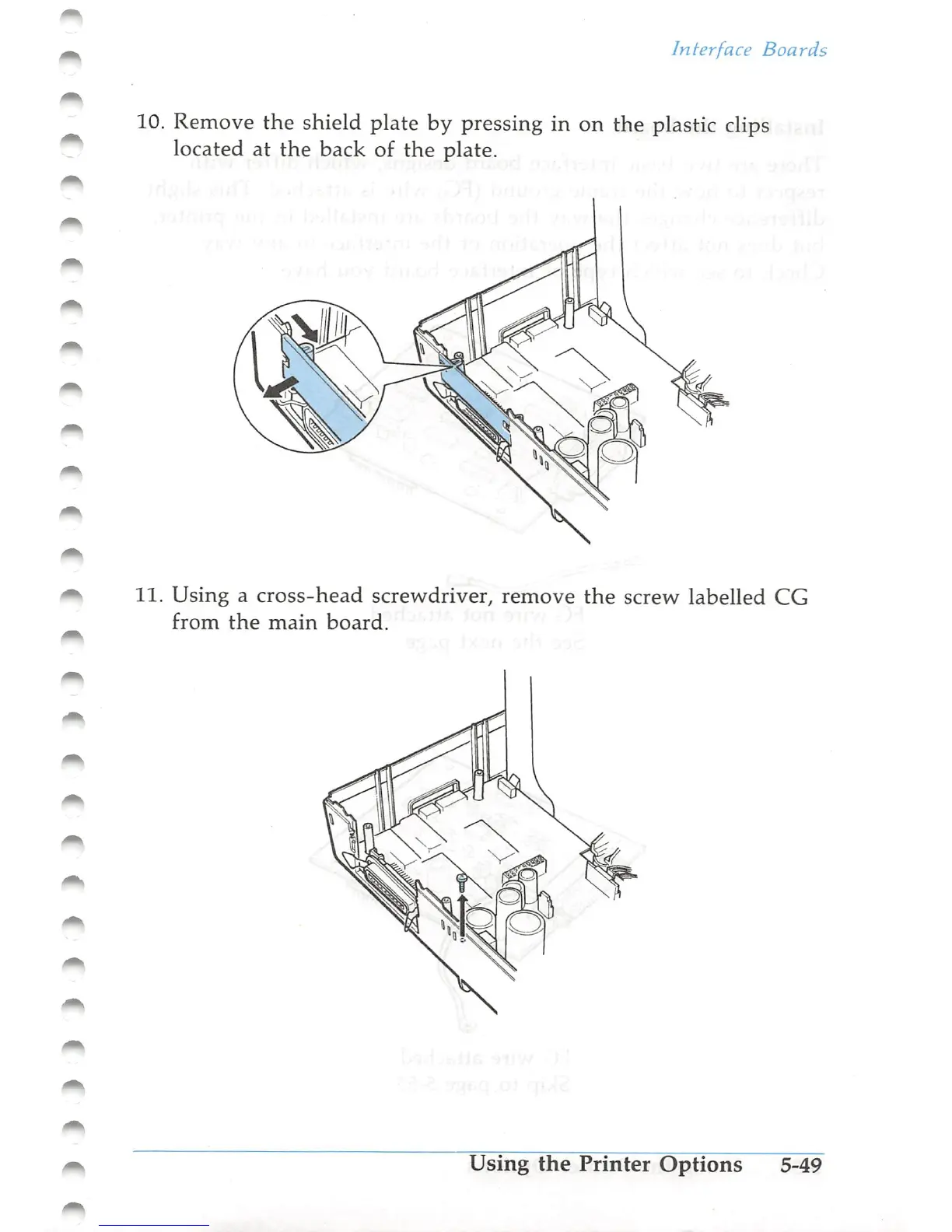

10. Remove the shield plate by pressing in on the plastic clips
located at the back of the plate.
11. Using a cross-head screwdriver, remove the screw labelled CG
from the main board.
Using the Printer Options 5-49

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
