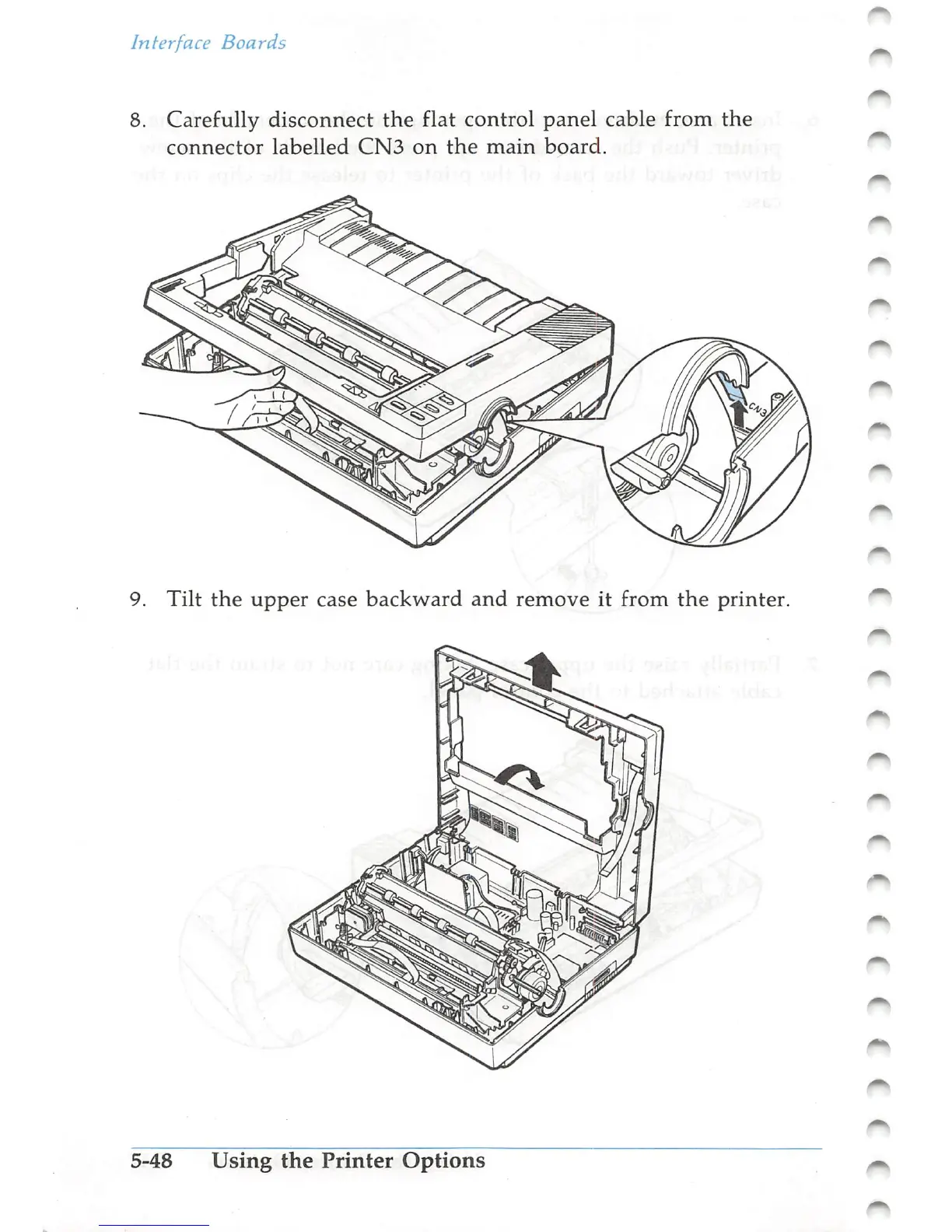

Interface
Boards
8.
Carefully
disconnect
the
flat
control
panel
cable
from
the
connector
labelled
CN3
on
the
main
board.
9.
Tilt
the
upper
case
backward
and
remove
it
from
the
printer.
fS,
r\
es
A
5-48
Using
the
Printer
Options
