Interface Boards

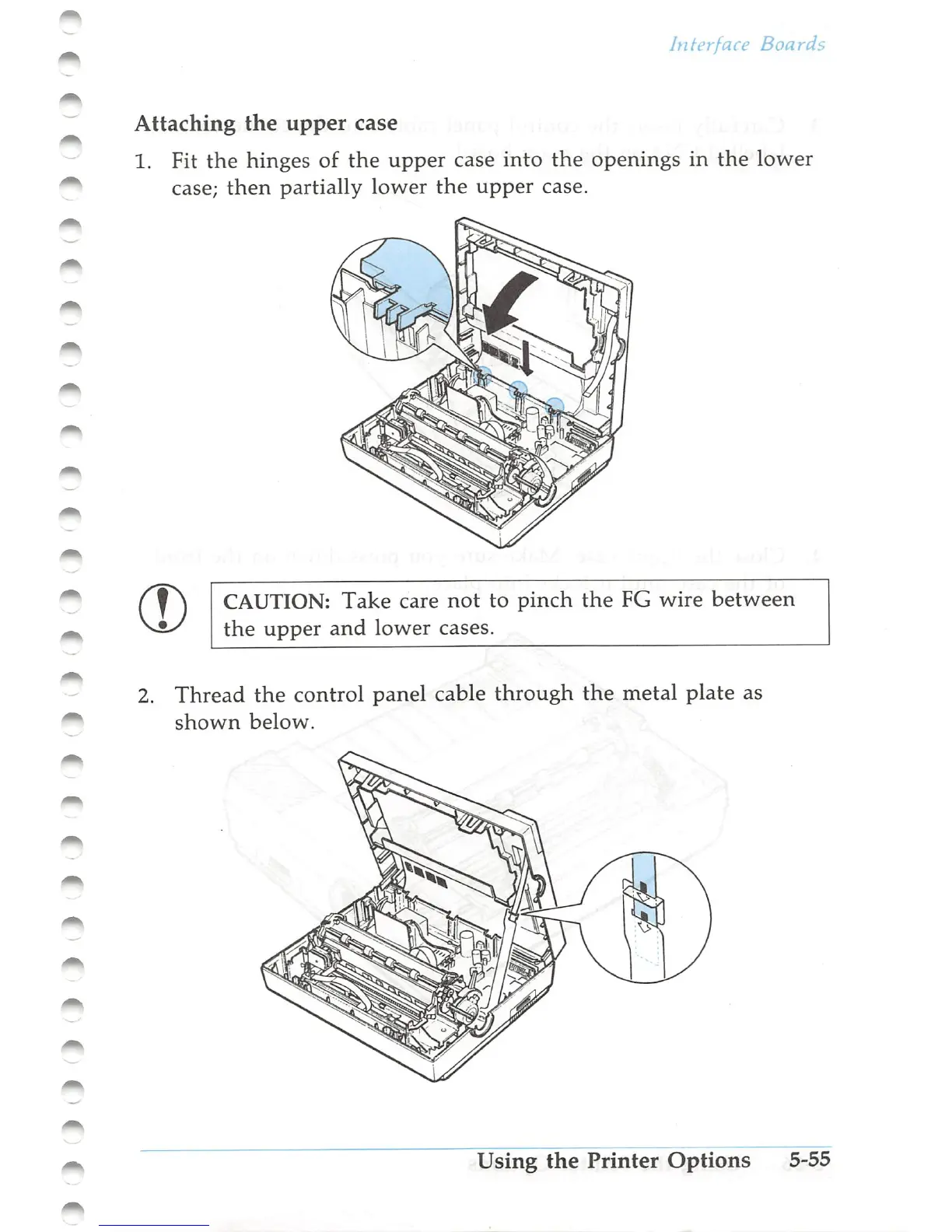

Attaching the upper case
1. Fit the hinges of the upper case into the openings in the lower
case; then partially lower the upper case.
^ (D
CAUTION: Take care not to pinch the FG wire between
the upper and lower cases.
2. Thread the control panel cable through the metal plate as
shown below.
Using the Printer Options 5-55
