Interface Boards

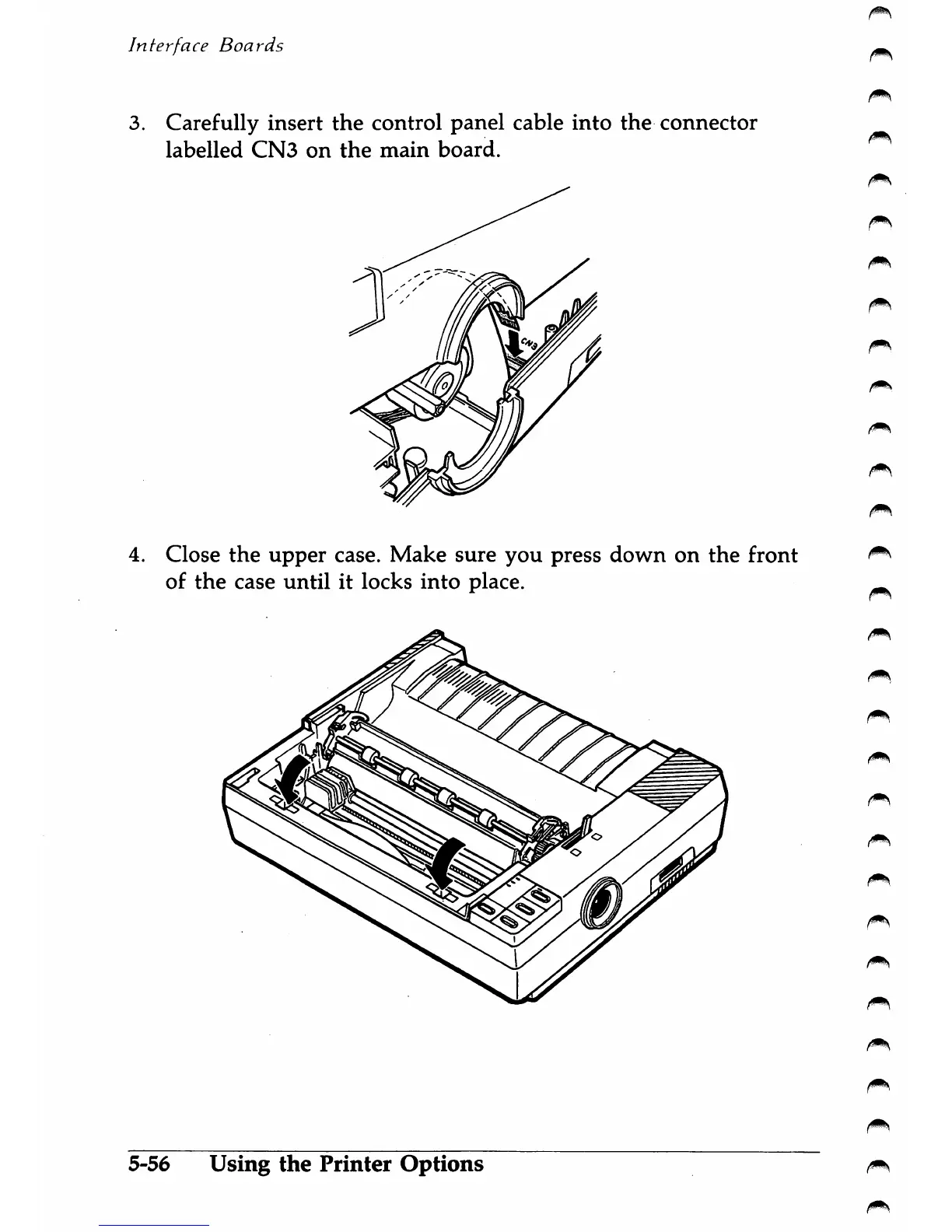

3. Carefully insert the control panel cable into the connector
labelled CN3 on the main board.
4. Close the upper case. Make sure you press down on the front
of the case until it locks into place.
ii
5-56 Using the Printer Options
