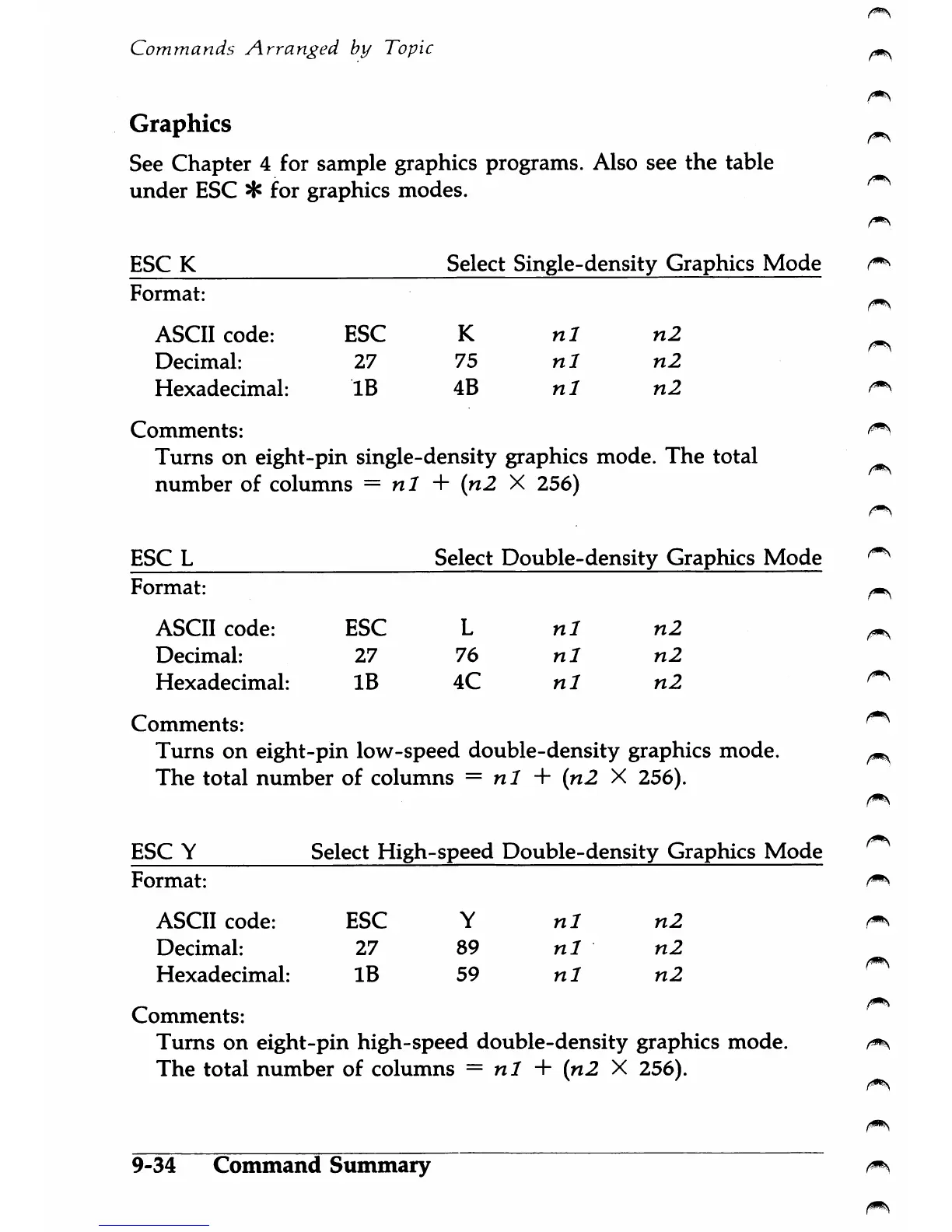

Epson LX-810 - Page 282

Commands A^rranged by Topic ^
Graphics
See Chapter 4 for sample graphics programs. Also see the table
under ESC ^ for graphics modes.
ASCII code:
ESC
K nl
n2
Decimal:
27
75 nl
n2
Hexadecimal:
IB
43 nl n2
ASCII code:
ESC
L
nl
n2
Decimal:
27 76 nl
n2
Hexadecimal: IB
4C nl n2
ESC K Select Single-density Graphics Mode ^
Format:
Comments:
Turns on eight-pin single-density graphics mode. The total
number of columns = nl + {n2 X 256)
ESC L Select Double-density Graphics Mode
Format: ^
Comments:
Turns on eight-pin low-speed double-density graphics mode. ^
The total number of columns = nl + {n2 X 256).
ESC Y Select High-speed Double-density Graphics Mode
Format: ^
ASCII code: ESC
Y
nl
n2
Decimal:
27
89 nl n2
Hexadecimal: IB
59 nl n2
Comments:
Turns on eight-pin high-speed double-density graphics mode. ^
The total number of columns = n/ + {n2 X 256).
9-34 Command Summary
