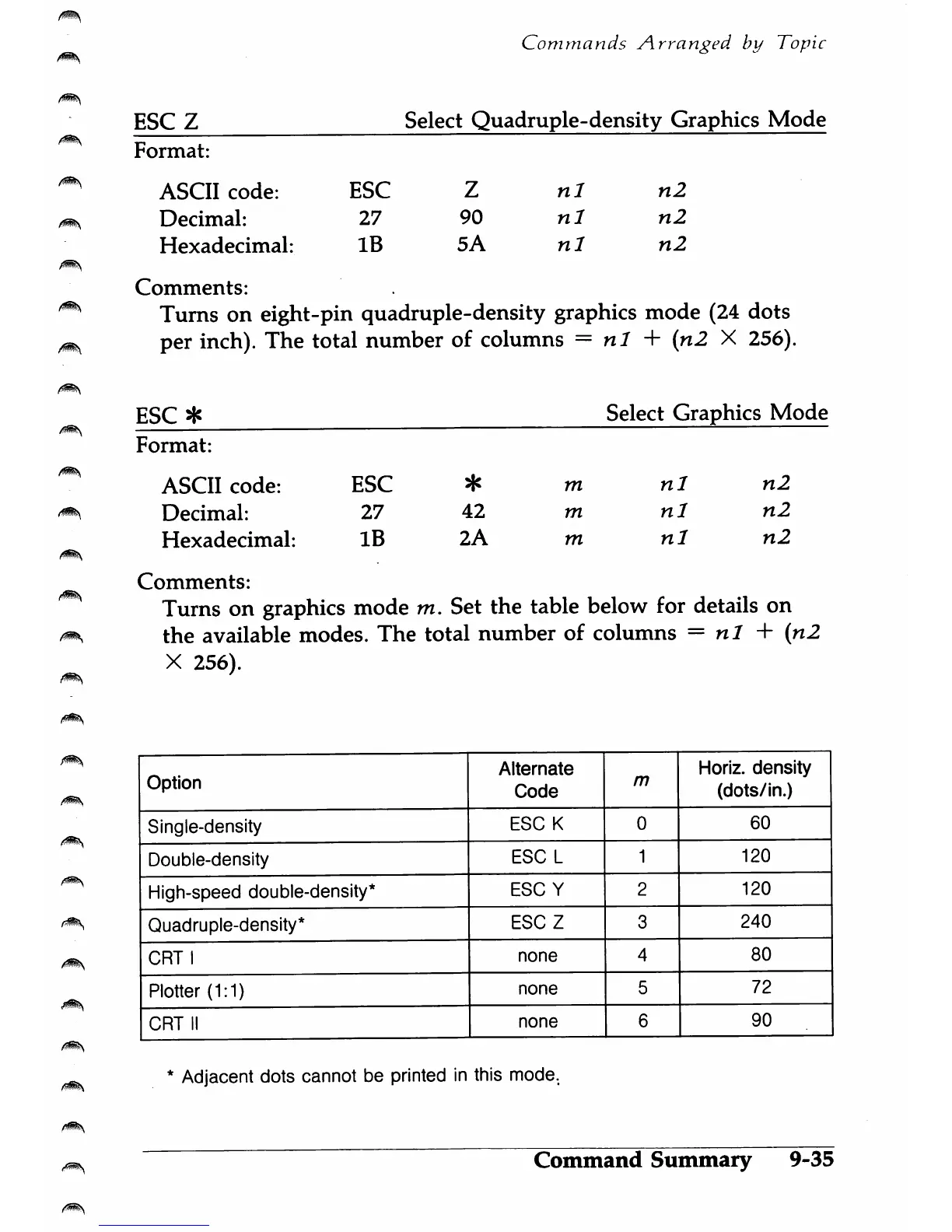

ESC Z
Commands Arranged by Topic
Select Quadruple-density Graphics Mode
Format:
ASCII code:
ESC
Z nl
n2
Decimal:
27
90
nl
n2
Hexadecimal:
IB
5A
nl
n2
Comments:
Turns on eight-pin quadruple-density graphics mode (24 dots
per inch). The total number of columns = nl + {n2 X 256).
ESC*
Select Graphics Mode
Format:
ASCII code:
ESC
*
m
nl
n2
Decimal:
27
42 m
nl
n2
Hexadecimal:
IB
2A
m
nl
n2
Comments:
Turns on graphics mode m. Set the table below for details on
the available modes. The total number of columns = nl + {n2
X 256).
Option
Alternate
Code
m
Horiz. density
(dots/in.)
Single-density
ESC K
0
60
Double-density
ESC L
1
120
High-speed double-density*
ESC Y 2
120
Quadruple-density*
ESC Z
3
240
CRT 1
none
4
80
Plotter (1:1)
none
5
72
CRT II
none
6
90
Adjacent dots cannot be printed in this mode.
Command Summary 9-35
